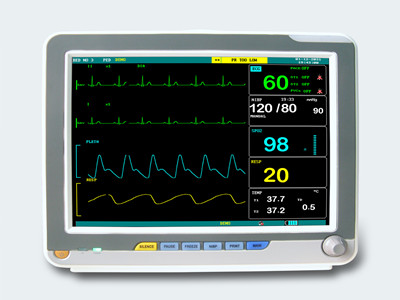

PATIENT MONITOR MGW6012

Product Specification

1     ECG



Lead Mode                                 5 Leads ( R, L, F, N, C or RA, LA, LL, RL,V)

Lead selection                 I, II, III, avR, avL, avF, V,

Waveform                                  2 ch



Lead mode                                  3 Leads ( R, L, F or RA, LA, LL)

Lead selection             I, II, III,

Waveform                                  1 ch



Gain                                           ´2.5mm/mV, ´5.0mm/mV, ´10mm/mV, ´20mm/mV,  auto

HR and Alarm

                     Range

                   Adult     15 ~ 300 bpm

                              Neo/Ped      15 ~ 350 bpm

                     Accuracy               ± 1% or ± 1bpm,which great

                     Resolution             1 bpm

                     Sensitivity             > 200 (uV _P-P)

Differential Input Impedance       > 5 MΩ

CMRR

                                                 Monitor            > 105 dB

Operation         > 105 dB

                                                 Diagnosis              > 85 dB

Electrode offset potential        ±300mV

Leakage Current                          < 10 uA

Baseline Recovery                       < 3 S  After Defi.

ECG Signal Range                      ±8 m V ( Vp-p )

Bandwidth

Surgery          1 ~ 15 Hz

                    Monitor               0.5 ~ 35 Hz

                     Diagnostic         0.05 ~ 100 Hz

Calibration Signal                       1 (mV _p-p),  Accuracy ：±5%

ST Segment Monitoring Range

Measure and Alarm       -2.0 ~ +2.0 mV

ARR Detecting

Type                             ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC

                  Alarm                         Available

Review              Available

2     RESPARATION

Method                                      Impedance between R-F(RA-LL)

       Differential Input Impedance        >2.5 MΩ

Measuring Impedance Range:       0.3~5.0Ω

Base line Impedance Range:  0 – 2.5  KΩ

Bandwidth                                  0.3 ~ 2.5 Hz

Resp. Rate

Measuring and Alarm Range

                                   Adult             0 ~ 120 rpm

                                   Neo/Ped         0 ~ 150 rpm

Resolution                    1 rpm

Accuracy                      ±2 rpm

Apean Alarm                              10 ~ 40 S

3     NIBP

Method                                      Oscillometric

Mode                                         Manual, Auto, STAT

Measuring Interval in AUTO Mode

       1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240,480 (Min)

Measuring Period in STAT Mode   5 Min

Pulse Rate Range                         40 ~ 240 bpm

       Alarm Type                         SYS, DIA, MEAN

              Measuring and alarm range

             Adult Mode

SYS             40 ~ 270 mmHg

DIA                     10 ~ 215 mmHg

MEAN          20 ~ 235 mmHg

             Pediatric Mode

SYS             40 ~ 200 mmHg

DIA                     10 ~ 150 mmHg

                     MEAN         20 ~ 165 mmHg

                     Neonatal Mode

SYS             40 ~ 135 mmHg

DIA                     10 ~ 100 mmHg

MEAN          20 ~ 110 mmHg

       Resolution

                    Pressure                1mmHg



       Accuracy

                   Pressure

Maximum Mean error                 ±5mmHg

Maximum Standard deviation      ±8mmHg

       Overpressure Protection

Adult Mode                 297±3 mmHg

                     Pediatric Mode        240±3 mmHg

             Neonatal Mode            147±3 mmHg

4     SpO2

Measuring Range                         0 ~ 100 %

Alarm Range                              0 ~ 100 %

Resolution                                  1 %

Accuracy

                                       70% ~ 100%  ±2 %

                                         0%  ~  69%  unspecified

Actualization interval                   about 1 Sec.

       Alarm Delay                               10 Sec.

    Pulse Rate

Measuring and Alarm Range

0~254bpm

Resolution                           1bpm

              Accuracy                             ±2bpm

5     TEMPERATURE

Channel                                      1

Measuring and Alarm Range         0 ~ 50 °C

Resolution                                  0.1°C

Accuracy                                    ±0.1°C

Actualization interval                   about 1 Sec.

    Average Time Constant                < 10 Sec.

6     IBP(Optional)

Label                                         ART, PA, CVP, RAP, LAP, ICP, P1, P2

       Measuring and alarm range

              ART                           0 ~ 300 mmHg

                                   PA                             -6 ~ 120 mmHg

                                   CVP/RAP/LAP/ICP       -10 ~ 40 mmHg

                                   P1/P2                           -10 ~ 300 mmHg

    Press Sensor

Sensitivity                    5  uV/V/mmHg

                     Impedance                    300-3000Ω

       Resolution                                  1 mmHg

       Accuracy                                    ±2% or ±1mmHg, which great

Actualization interval                   about 1 Sec.
