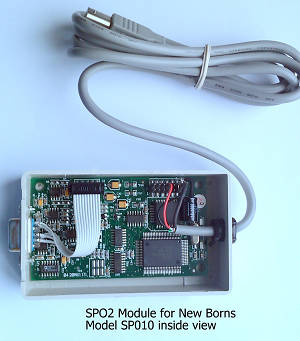

MODEL SP010 SPO2 MODULE SPECIAL FOR NEW BORNS OR NEONATE (PN: MO-SP010)

The SPO2 Module SP010 is specially used in measurement of the new born baby's oxygen saturation and pulse rate. In addition to the average oxygen saturation, the SPO2 Module SP010 can send instantaneous blood oxygen saturation, especially in the sleep research very useful. the SPO2 module SP010 is compatible with all of the BCI probe. The SPO2 module SP010 can be used in infants and newborns.
MODEL SP010 SPO2 MODULE SPECIAL FOR NEW BORNS OR NEONATE (PN: MO-SP010)
Model Number: SP010
GOLDWEI Item No.: MONM-SP010


The SPO2 Module SP010 is specially used in measurement of the new born baby's oxygen saturation and pulse rate.  In addition to the average oxygen saturation, the SPO2 Module SP010 can send instantaneous blood oxygen saturation, especially in the sleep research very useful. the SPO2 module SP010  is compatible with all of the BCI probe.  The SPO2 module SP010 can be used in infants and newborns.

Feature:

     Small size and easy installation; reliability, high accuracy

     Enhanced signal processing capabilities, reduced perfusion of human movement and the impact of weak

     Applicable to infants, young children and newborn

     Operating voltage 5.0 v

     Can display maps and pulse oxygen column

     Transfer Protocol BCI compatible

     Compatible with BCI probe



Specifications:

Data Provided to the Host System
Oxygen saturation   BF-type
SpO2 Measuring Range: 50 - 99% Functional SpO2 (1% increments)
  Measuring Accuracy: Adult and Neonate:

2@ 70-100%

3 @ 50-70%

SpO2 less than 50% is undefined.

Pulse Rate Measuring Range: 30 254 BPM (1 BPM increments)
  Measuring Accuracy: greater of

2 BPM or

2%

Signal Strength   0 - 15
Bar graph   0 - 15
Plethysmogram   0 128, auto-gained for highest resolution
Flags Pulse Beep
Sensor error (No Finger in Sensor or Sensor Unplugged)
Serial Communication Logic Levels 3.3V TTL voltage levels
Power Requirements
Power Supply Input Voltage   +5.00.15VDC @ <50mA electrically isolated
Power   50mA
Noise Spec
Security
Environmental conditions
Operating temperature   5-50
Storage temperature   -20 - +70
Relative humidity   0-85% (non-condensing)
Dimension   52mm x 39mm x 9mm
The SPO2 Module SP010 is specially used in measurement of the new born baby's oxygen saturation and pulse rate. In addition to the average oxygen saturation, the SPO2 Module SP010 can send instantaneous blood oxygen saturation, especially in the sleep research very useful. the SPO2 module SP010 is compatible with all of the BCI probe. The SPO2 module SP010 can be used in infants and newborns.
