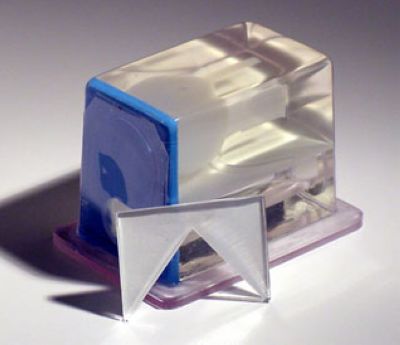

ULTRASOUND PROSTATE TRAINING PHANTOM MODEL 053-I - THE IDEAL TRAINING DEVICE FOR PERMANENT SEED IMPLANTATION PROCEDURES

The Model 053-I Ultrasound Prostate Training Phantom is a disposable phantom developed for practicing permanent seed implantation procedures. It contains several unique features to assist the teaching and learning process.
ULTRASOUND PROSTATE TRAINING PHANTOM MODEL 053-I - THE IDEAL TRAINING DEVICE FOR PERMANENT SEED IMPLANTATION PROCEDURES
Model Number: Model 053-I
GOLDWEI Item No.: UPCS-053-I


Ultrasound Prostate
Training Phantom

The ideal training device for permanent seed
implantation procedures

Model 053-I




The CIRS Model 053-I Ultrasound Prostate Training Phantom is a disposable phantom developed for practicing permanent seed implantation procedures. It contains several unique features to assist the teaching and learning process.

The simulated perineal membrane permits needle insertion with realistic resistance. In addition, the area below the rectal wall is a clear gel to permit visualization of probe orientation. The prostate is transparent to allow visual verification of seed placement. The phantom also includes a removable pubic arch simulation.

This modification to the CIRS Model 053 phantom was developed with Dr. Peter Grimm and his associates at the Seattle Prostate Institute.




Container:
Material: Clear acrylic
Dimensions: 11.5 cm X
7.0 cm X 9.5 cm
Front probe opening:
3.2 cm diameter
Rear probe opening:
2.6 cm diameter

Perineal membrane:
3 mm thick urethane

Background gel:
Similar to water with very little backscatter attenuation
< 0.07 dB/cm/MHz

Urethra:
Dimensions: 0.7 cm diameter

Material: Zerdine?, low scatterSeminal vesicles:
Dimensions:
7 mm diameter X 10 cm long

Material: Zerdine
Properties: Speed=1540 m/s
Attenuation= 0.5 dB/cm/MHz
Backscatter similar to liver tissue

Prostate:
Dimensions:
4 cm X 4.5 cm X 4.0 cm
Material: Zerdine, low scatter


Rectal wall:
Dimensions: 6 cm X 11 cm
X 0.2 cm

Material: Zerdine
Properties: Speed=1540 m/s
Attenuation= 0.5 dB/cm/MHz
Backscatter similar to liver tissue

OTHER FEATURES:
Removable pubic arch

The CIRS Model 053-I Ultrasound Prostate Training Phantom is a disposable phantom developed for practicing permanent seed implantation procedures. It contains several unique features to assist the teaching and learning process. The simulated perineal membrane permits needle insertion with realistic resistance. In addition, the area below the rectal wall is a clear gel to permit visualization of probe orientation. The prostate is transparent to allow visual verification of seed placement. The phantom also includes a removable pubic arch simulation. This modification to the CIRS Model 053 phantom was developed with Dr. Peter Grimm and his associates at the Seattle Prostate Institute.

There are no documents download yet.
