TISSUE EQUIVALENT ULTRASOUND PROSTATE PHANTOM MODEL 053 - THE IDEAL TRAINING DEVICE FOR ULTRASOUND GUIDED PROCEDURES

Tissue Equivalent Ultrasound Prostate Phantom

The ideal training device for  ultrasound guided procedures

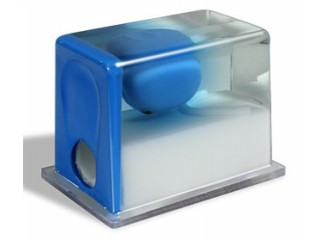

Model 053 (option A shown) The CIRS Model 053 Ultrasound Prostate Training Phantom is a disposable phantom developed for practicing procedures which involve scanning the prostate with a rectal probe. The prostate along with structures simulating the rectal wall, seminal vesicles and urethra is contained within an 11.5 cm X 7.0 cm X 9.5 cm clear acrylic container. A 3 mm simulated perineal membrane enables various probes and surgical tools to be inserted into the prostate. This phantom is an ideal training device for ultrasound guided cryosurgery, radioactive seed implantation, and needle biopsy.

Specifications:

Container: Material:  Clear acrylic Dimensions:  11.5 cm X 7.0 cm X 9.5 cm Front probe opening: 3.2 cm diameter Rear probe opening: 2.6 cm diameter Perineal membrane: 4.5 cm diameter 3 mm thick urethane Background gel: Similar to water with very little backscatter attenuation < 0.07 db/cm/MHz Urethra: Dimensions: 0.7 cm diameter Material: Zerdine?/SUP> , low scatter Seminal vesicles: Dimensions: 7 mm diameter X 10 cm long Material: Zerdine Properties: Speed=1540 m/s Attenuation= 0.5 dB/cm/MHz Backscatter similar to liver tissue Prostate: Dimensions: 5 cm X 4.5 cm  X 4.0 cm Material: Blue Zerdine, high scatter Volume: approximately 53 cc Rectal wall: Dimensions:  6 cm X 11 cm X 0.5 cm Material: Zerdine?(1) Properties: Speed=1540 m/s Attenuation= 0.5 dB/cm/MHz Backscatter similar to liver tissue OPTIONS: A. Embedded lesion 0.5cc  +/- hypoechoic unless otherwise  specified. (Ideal for needle biopsy) B. Urethane version- see data  sheet for Model 058 C. Clear rectal area for  visualization of probe orientation.  D. Semi-clear prostate allows  visualization of seed placement. E. Pubic arch simulation. F. Hollow urethra for catheter  insertion. G. Oil based prostate gel for  minimal needle tracks. H. Small rectal opening version I. Seed implant version-see  data sheet for Model 053-I
