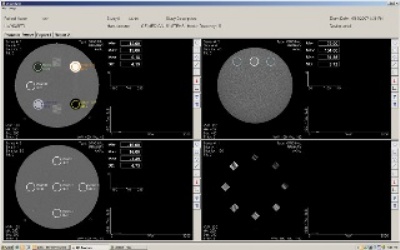

The NEW Gammex 464-ACTS Automated CT Software provides automated data analysis
for the ACR accreditation CT
Phantom 464. Physicists who have a responsibility for obtaining or maintaining ACR accreditation for one or more
CT scanners will appreciate the time savings provided by the new software.
The 464-ACTS software will help medical physicists to significantly reduce their time spent analyzing the results of the scan,
while providing excellent Region of Interest (ROI) positioning precision. All results are available in report form, enabling the
physicist to simplify and speed up the quality control process.
Image Analysis is provided for the following:
• Slice Thickness
• Measured CT numbers:
- Polyethylene
- Bone mimicking material
- Water mimicking material
- Acrylic
- Air
• Low Contrast Resolution
• CT number uniformity and accuracy
• Distance accuracy
• High contrast resolution
SPECIFICATIONS
MINIMUM HARDWARE REQUIREMENTS
Microsoft Windows XP Operating System
Clean Install
Service Pack 2
Intel Pentium-based 1 GHz microprocessor
1 GB free hard drive space
1 GB RAM
CD-ROM Drive
32 bit Color
1280x1024 screen resolution
Automated CT Software
for the Model 464 ACR
Accreditation Phantom
GAMMEX 464-ACTS
The NEW Gammex 464-ACTS Automated CT Software provides automated data analysis for the ACR accreditation CT
Phantom 464. Physicists who have a responsibility for obtaining or maintaining ACR accreditation for one or more
CT scanners will appreciate the time savings provided by the new software.
The 464-ACTS software will help medical physicists to significantly reduce their time spent analyzing the results of the scan,
while providing excellent Region of Interest (ROI) positioning precision. All results are available in report form, enabling the
physicist to simplify and speed up the quality control process.
Image Analysis is provided for the following:
• Slice Thickness
• Measured CT numbers:
- Polyethylene
- Bone mimicking material
- Water mimicking material
- Acrylic
- Air
• Low Contrast Resolution
• CT number uniformity and accuracy
• Distance accuracy
• High contrast resolution
