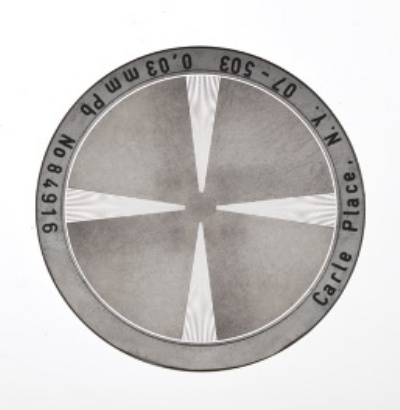

The Model MA0021, MA0431 and MA0054 Star Test Patterns can provide the needed tools to help determine focal
spot size by observing the regions of blurring which occur when the pattern is radiographed by an x-ray source of finite
dimensions.
Model Number:Model MA0021, MA0431, MA0054 GOLDWEI Item No.:UPGX-MA0021
The Gammex MA0021, MA0431 and MA0054 Star Test Patterns can provide the needed tools to help determine focal
spot size
by observing the regions of blurring which occur when the pattern is radiographed by an x-ray source of finite
dimensions. Radiation from different areas of the focal spot will cause a periodic blurring of the pattern due to the penumbra
effects. Knowledge of the geometric factors and the distance from the center of the pattern to the region where blurring
occurs will permit the calculation of the focal spot size.
SPECIFICATIONS
A = Angle of Single Line within a Sector
B = Number and Size of Patterned Sectors
C = Focal Spot Size Measured
A B C
MA0021 0.5กใ 4-15กใ 0.1-0.3 mm
MA0431 2.0กใ 1-360กใ 0.1-0.3 mm
MA0054 0.5กใ 4-45กใ 0.1-0.3 mm
Lead Foil Thickness in Millimeters: 0.05
Diameter in Millimeters: 55
Star Test
Patterns
Model MA0021, MA0431, MA0054
The Gammex MA0021, MA0431 and MA0054 Star Test Patterns can provide the needed tools to help determine focal
spot size by observing the regions of blurring which occur when the pattern is radiographed by an x-ray source of finite
dimensions. Radiation from different areas of the focal spot will cause a periodic blurring of the pattern due to the penumbra
effects. Knowledge of the geometric factors and the distance from the center of the pattern to the region where blurring
occurs will permit the calculation of the focal spot size.
