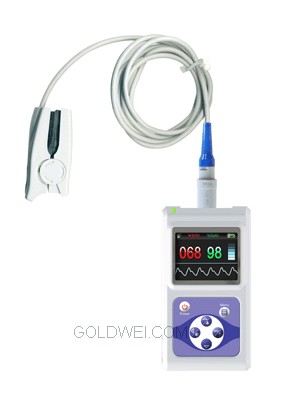

MODEL CMS 60D (HANDHELD OXIMETER)

Features:

Routine Check Mode and Continuous Monitoring Mode

Sync with PC based Sofrware (WinXP and WinVista)

Display:1.8" Color TFT

Resolution:160x96

Display Mode:Display Direction adjustable

Indicator:Power indicator,Alarm sound, Pluse tone

Interface:Socket for connecting SPO2 sensors and Socket for communication cables

Power Supply: 2 AA Size Batteries DC 3V, <60MA

Record:Data can be recorded up to 24 hours

Alarm:Ajustable High and Low limits

Technical specifications:

Safety

Meet the requirment of IEC60601 series

Type of Protection:Class II with internal electirc power supply

Degree of Protection:BF

Dimention and Weight

Dimention:92(W)x82(H)x22(D)mm

Weight:136g(with battery)

Operation Environment:

Temperature:0?~ +40?

Humidity:15% ~ 95%

Storage Environment:

Temperature:-20?~ +60?

Humidity:10% ~ 95%

Patient Range

Neonate,Pediatric and AdultSPO2:

Measurement Range:0 ~ 100%

Resolution:1%

Accuracy:±2%(70%~100%, Adult/Pediatric, non- motion) ±3%(70%~100%, Neonate, non-motion) 0% ~ 69% unspecified

Alarm Range:0% ~ 100%

Refreshing Rate:1sPulse Rate:

Measurement Range:25 ~ 250 bpm

Resolution:1bpm

Accuracy:±3 bpm (non-motion)

Alarm Range:25 ~ 250 bmp

Refreshing Rate:1s

:
-> Routine Check Mode and Continuous Monitoring Mode
-> Sync with PC based Sofrware (WinXP and WinVista)
-> Display:1.8" Color TFT
-> Resolution:160x96
-> Display Mode:Display Direction adjustable
-> Indicator:Power indicator,Alarm sound, Pluse tone
-> Interface:Socket for connecting SPO2 sensors and Socket for communication cables
-> Power Supply: 2 AA Size Batteries DC 3V, <60MA
-> Record:Data can be recorded up to 24 hours
-> Alarm:Ajustable High and Low limitsTechnical specifications:
-> Safety
-> Meet the requirment of IEC60601 series
-> Type of Protection:Class II with internal electirc power supply
-> Degree of Protection:BF
-> Dimention and Weight
-> Dimention:92(W)x82(H)x22(D)mm
-> Weight:136g(with battery)
-> Operation Environment:
-> Temperature:0?~ +40?
-> Humidity:15% ~ 95%
-> Storage Environment:
-> Temperature:-20?~ +60?
-> Humidity:10% ~ 95%
-> Patient Range
-> Neonate,Pediatric and AdultSPO2:
-> Measurement Range:0 ~ 100%
-> Resolution:1%
-> Accuracy:±2%(70%~100%, Adult/Pediatric, non- motion) ±3%(70%~100%, Neonate, non-motion) 0% ~ 69% unspecified
->Alarm Range:0% ~ 100%
->Refreshing Rate:1sPulse Rate:
->Measurement Range:25 ~ 250 bpm
->Resolution:1bpm
->Accuracy:±3 bpm (non-motion)
->Alarm Range:25 ~ 250 bmp
->Refreshing Rate:1s
