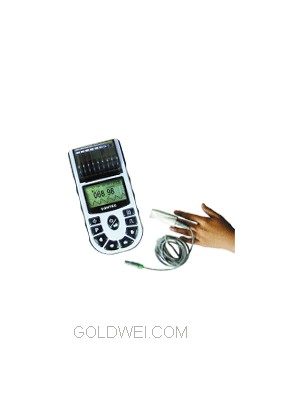

Can be used in: hospital, home, community medical treatment, sports healthcare, etc.
Can measure SPO2 and PR accurately
SPO2 and PR display, PR waveform and bargraph display
Battery voltage indicator
Friendly Operation Menu for The Function Setting
Pulse sound function
Alarm function; can set upper and lower limits.
USB interface to Computer, software can analyse, store and print the data (optional).
Rechargeablr Li battery
Function switch used to activate measurement and turn off power; function key for menu setting
Built-in thermal printer, high printing quality
Built-in single channel ECG monitor (3 leads) (optional)
Low power consumption
Small volume(190(L) × 90(W) ×40(H) mm)?light,convenient to carry Technical Parameters
2.7' LCD display,resolution 160*96
SPO2: 35~99% Pulse Ratio: 30~250BPM
Resolution: 1% for SPO2, 1BPM for pulse ratio
Accuracy: ±2% (70%~ 99%), unspecified (<70%) for SPO2, ±2BPM or±2% (select larger) for pulse ratio
Power: 1 rechargeable Li battery
Charge manner : AC transformer
Interference resistance capacity against ambient light and measurement performance at low perfusion
Can work more than 15 hours continuously
Thermal printing paper 57mm×225mm
