ITEM DETAILS |
 |
|
|

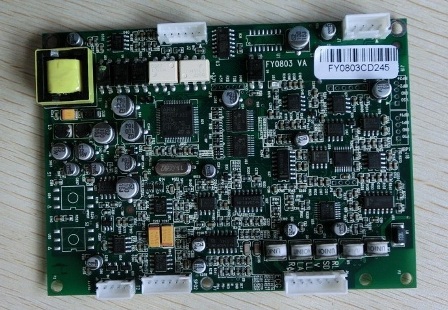

MULTI-PARAMETER BOARD MODEL AGW0803 MODULE 7-IN-1 PARAMETERS FOR BUILDING PATIENT MONITOR |
| The Multi-Parameter Board Model AGW0803 monitoring
module includes ECG/RESP, SpO2, NIBP, TEMP, Pulse
Rate and IBP(optional)，Arrhythmia analysis, ST
calculation, Pace analysis，Anti-ESU, anti-
defibrillator. NIBP has dual protection function to
keep patient safety. Rich screen layout selections:
standard, big font, trend table, NIBP trend, ECG
full lead, oxyCRG; Optinal: recorder, dual IBP, CO2,
GAS, IoC. This is the Parameter Board only, it has
to work with a mainboard.
|
|
Model Number:
AGW0803
GOLDWEI Item No.:
MOAD-AGW0803
|
|
|
|
1. Input Power
12V: ±5%
2. Environment
Temperature
Working 0 ~ 40 °C
Storage -20 ~ 50°C
Humidity
Working 15% - 90 %
Storage 15% - 90 % (no coagulation)
3. Accordant standard
IEC60601-1-1 General Requirements for Safety
IEC 60601-1-2 Medical electrical Equipment
IEC 60601-1-4 Programmable Electrical Medical Systems
EN 865 Pulse Oximeters
EC13 AAMI - ANSI American standard
EN 12470-4 Clinical thermometers
EN 1060-1 Specification for Non-invasive Sphygmomanometers
SP-10 Standard for Electronic or Automated Sphygmomanometers
IEC 61000-4-2 EMC
4. Signal Interface
RS232/TTL serial interface
|
The AGW0803 monitoring module including ECG/RESP, SpO2, NIBP, TEMP, Pulse Rate and IBP(optional)，Arrhythmia analysis, ST calculation, Pace analysis，Anti-ESU, anti- defibrillator. NIBP has dual protect function to keep patient safety. Rich screen layout selections: standard, big font, trend table, NIBP trend, ECG full lead, oxyCRG; Optinal: recorder, dual IBP, CO2, GAS, IoC
AGW0803 monitoring board can get communication with the CPU system through a serial port. It can provide real-time 2 ECG waveform, 1 SPO2 waveform, data of 1 RESP waveform and 2 IBP waveform, through analysis, it can provide data of HR and ST, and physical parameters as RR, SPO2, PR, NIBP (Systolic, Diastolic, Mean pressure) and IBP (Systolic, Diastolic, Mean pressure).
The module can be easily integrated to the whole sets of the monitor equipment after specially designed.
1. Input Power
12V: ±5%
2. Environment
Temperature
Working 0 ~ 40 °C
Storage -20 ~ 50°C
Humidity
Working 15% - 90 %
Storage 15% - 90 % (no coagulation)
3. Accordant standard
IEC60601-1-1 General Requirements for Safety
IEC 60601-1-2 Medical electrical Equipment
IEC 60601-1-4 Programmable Electrical Medical Systems
EN 865 Pulse Oximeters
EC13 AAMI - ANSI American standard
EN 12470-4 Clinical thermometers
EN 1060-1 Specification for Non-invasive Sphygmomanometers
SP-10 Standard for Electronic or Automated Sphygmomanometers
IEC 61000-4-2 EMC
4. Signal Interface
RS232/TTL serial interface
|
There are no documents download yet.
|
|
|
|
