Item Details   ITEM DETAILS

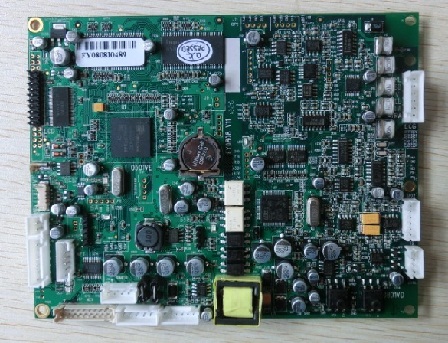

MULTI-PARAMETER MODULE 7-IN-1 MODEL AGW0808 PARAMETER BOARD AND MAIN BOARD INTEGRATED

The AGW0808 all in one board including ECG/RESP, SpO2, NIBP, TEMP, Pulse Rate and IBP(optional) Arrhythmia analysis, ST calculation, Pace analysis Anti-ESU, anti- defibrillator. Its characteristics include: the adoption of a CPU controls seven parameters functional modules with high master degrees, high reliability, high performance, low- cost, low consumption, small size, it is the best options for patient monitor. The board integrates the parameter board and the main board with a CPU system, it reduces the hassle to write code and program to communicate with the main board.
MULTI-PARAMETER MODULE 7-IN-1 MODEL AGW0808 PARAMETER BOARD AND MAIN BOARD INTEGRATED
Model Number: AGW0808
GOLDWEI Item No.: MOAD-AGW0808


Accordance with IEC60601 standard
Based on Linux, system software has high reliability and stability

Support  7”~15” TFT LCD,resolution up to 1024×768

Unique human voice alarm

3 channel ECG circuit, can display 7 ECG waveforms

RESP LEAD RA-LL or RA-LA selectable

Analog output and nurse call

Rich screen layout selections: standard, big font, trend table, NIBP trend, ECG full lead, oxyCRG;
Optinal: recorder, dual IBP, CO2, GAS, IoC



1.   Input Power
12V: ±5%
5V: ±5%


2.  Environment
Temperature
Working    0 ~ 40 °C
Storage    -20 ~ 50°C



Humidity
Working    15% - 90 %
Storage    15% - 90 % (no coagulation)


3.  Accordant standard
IEC60601-1-1         General Requirements for Safety
IEC 60601-1-2        Medical electrical Equipment
EN 865               Pulse Oximeters
EN 475               Medical Devices, Electrically-generated Alarm Signals
EN 12470-4           Clinical thermometers
EN 1060-1            Specification for Non-invasive Sphygmomanometers
SP-10                Standard for Electronic or Automated Sphygmomanometers



4. Display
10.4/12.1’/15’ color TFT, resolution support 640×480, 800×600 and 1024×768
6 screen layout: Standard, Big Font, ECG Full Lead, OxyCRG, Trend Table, Nbp Trend
Up to 11 wave form in same screen
Up to 13 parameters in same screen


5.  User Input
Keyboard with 6 keys and rotary encoder.


6. User Output
Analog output and nurse call output.




6.1  Recorder
Paper width     48 mm

speed           25/50 mm/s

wave channel    3 channels



6.2  Alarm Led
Red & yellow led indicate different alarm level.


6.3  Alarm Speaker
Output alarm sound, voice alarm, pulse sound &  key sound.


7.  Network
standard RJ45 Socket Network interface.
AGW0808 can communicate with Central Monitoring System via network cable. AGW0808 software can upgrade via network.



8.  Storage
Patient monitor settings and all storages are non-volatile.
Up to 1440 hours of trend review
Up to 10 hours of wave review
Up to 10000 NIBP review
200 alarm event review







The AGW0808 all in one board including ECG/RESP, SpO2, NIBP, TEMP, Pulse Rate and IBP(optional), Arrhythmia analysis, ST calculation, Pace analysis, Anti-ESU, anti-defibrillator.  NIBP has dual protect function to keep patient safety. Spo2 has very good performance even in low perfusion and movement envionment. Dual channel TEMP and IBP has very wide measure range and good precision. Can connect to CMS and system software can be upgraded by network.

Its characteristics include: the adoption of a CPU controls, seven parameters functional modules with high master degrees, high reliability, high performance, low-cost, low consumption, small size, it is the best options for patient monitor.



Accordance with IEC60601 standard
Based on Linux, system software has high reliability and stability

Support  7”~15” TFT LCD,resolution up to 1024×768

Unique human voice alarm

3 channel ECG circuit, can display 7 ECG waveforms

RESP LEAD RA-LL or RA-LA selectable

Analog output and nurse call

Rich screen layout selections: standard, big font, trend table, NIBP trend, ECG full lead, oxyCRG;
Optinal: recorder, dual IBP, CO2, GAS, IoC
