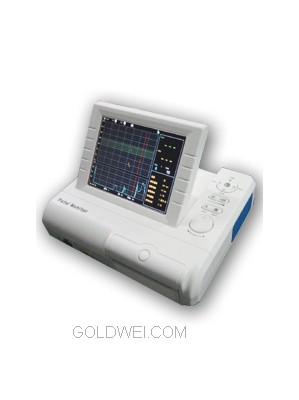

CMS800G FETAL MONITOR

Feature:

CMS800G Fetal Monitor can provide different configurations according to different user
requirements: FHR1(Ultrasonic Channel ?), FHR2 (Ultrasonic Channel ?),TOCO, FMOV (Fetal Movement Marker).Monitoring results can be recorded by built-in recorder for continuous or intermittent records. The monitor can be used individually or connected Interface for the purpose of central monitoring.

     Compact and portable design, can be put on table or wall mounted


     8.4" color LCD screen display which can be rotatable up to 60°


     Display of the patient data and curve clearly


     Can record fetal movement manually


     High and low fetal heart rate alarm function


     Continuous 24-hour real-time monitoring function


     Continuous 12-hour patient curve and data storage with playback ability


     With picture freeze function


     Chinese and English operation interface selectable


     Single, Twins Monitoring selectable


     9 chip pulse width beam probe


     Extra-long life, high-resolution built-in thermal printer which can output waveform, text, and other information


     Built-in RJ45 communication interface, can be connected with central monitoring system

Specification:

Optional:Twins monitoring ultrasound probe FHR2

Ultrasound probe nominal frequency:1.0MHz

FHR Range:65BPM~210BPM; Accuracy:±2%

AC power supply voltage:AC100V~240V ;Working Frequency:50Hz/60Hz

TOCO Range: 0~100% ;Resolution:1%

Fetal marking: Manual push button(Operated by pregnant women)

 CMS 800G Fetal Monitor
