MODEL CMS800 FETAL MONITOR

Feature

Model CMS 800 is a lightweight, space-saving fetal monitor, ensure external and internal monitoring parameters .It can be used up to and during the second stage labor. It also can be connected to the obstetrical central station to construct central monitoring system.

     Light weight, space-saving, easy operation


     Nine elements high sensitive probe


     Basic function: FHR, TOCO, fetal movement, twins monitoring and automatic channel recognition.


     Wide range of applying voltage (100-250V)


     Automatic Fetal Movement Detection


     Built-in network/PC connecting interface


     Software for data recording, analyzing and displaying

Specification:



FHR                                                                 Online: RS-232, RS485



2 MHz pulse wave                                             Operation Environment



Rang of the heart rate: 50-210bpm                       Electric specification:100-250V    AC: 50Hz



Precision: ±1bpm                                             Temperature: 5?-40?



Record differentiated: 30bpm/cm                         Applicable range:



UA                                                                   FHR heart rate monitor



0-100 units precision: ±1                                    UA TOCO monitor



Monitor performance                                          Record: build-in thermal record



Display: The red alarm display of the high             Option:



Brightness LED power supply indicator light,         MFM



audible and visual alarm                                       DECG



Alarm: upper and lower limit alarm                        IUP

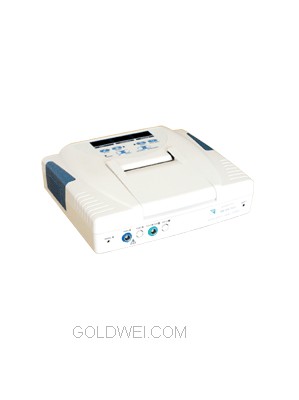

CMS 800 Fetal Monitor
