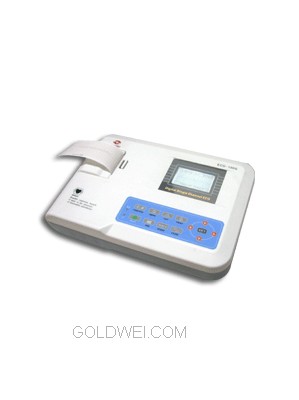

MODEL ECG-100G DIGITAL SINGLE CHANNEL ECG

Features:

     High-resolution thermal printing array system

     Frequency response is as high as 150Hz

     Capable of printing continuously on channel trace and annotations including lead mark

and parameter such as sensitivity, paper speed and filter operation status

     High resolution digital filter inhibits baseline drift without affecting ECG waveform

     One-touch operation

     Concept of floating input circuit meets IEC safety standard

     Rechargeable battery supporting more than 50 patient examinations

     Lead Standard: 12 leads

Specifications

Input Circuit Floating; Protection against Defibrillator effect
Lead       Standard 12 Leads, Lead change automatically
Patient Current Leakage   <10µA
Input Impedance =10?O
Calibrating Voltage 1mV±3%
A/D Conversion   12 bit
Frequency Response 0.05Hz~150Hz (IEC)
Time Constant >3.2seconds

CMRR
>80dB
>100dB (with filter)

EMG Filter 35Hz (-3dB) / 25Hz (-3dB)
Sensitivity 1/2, 1, 2 (cm/mV), Conversion Deviation=5%
Recording System Thermal-array
8 dots/mm ( vertical )

16 dots/mm ( horizontal, 25mm/sec )

Paper Speed   25, 50mm/s±3%
Recording Paper 50mm,20m, high-speed roll
Input Circuit Current   =50nA
Safety Standard IEC class I, type CF
Power Supply
  AC: 220V / 110V, 50/60Hz

DC: 12V rechargeable battery

Skin Voltage Tolerance   ±300mV
Noise Level <15uVp-p
Dimensions 310mm×230mm×70mm
Dimension of Packing 400mm×280mm×160mm
Weight 2.75kg
