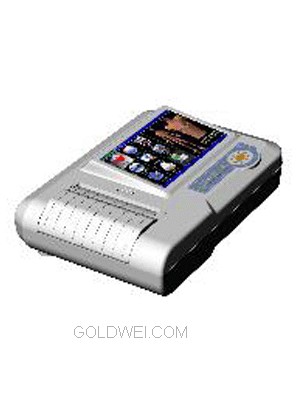

MODEL ECG-600G DIGITAL 3/6 CHANNEL ECG MACHINE

Feature:

     7" TFT, touch screen, led backlight

     Digital isolation technology and signal pro-cessing solution, digital filter

     Patient managment, name and age and id.

     Detail analysis report.

     Multi-language options: Germany, France,Italian, Turkey, etc

     Built-in lithium rechargeable battery, wide thermall printing system

     USB and LAN socket.

     Memory: Built-in memory or mini SD Memory card. Store more than 1000 pieces of archive

     Auto-measurement, auto-analysis, and auto-interpretation.

Specifications:

     Lead: Standard 12 leads

     Patient leak current: <10uA

     Input impedance: >=50M

     Frequency response:0.05 ~ 150HZ(-3dB)

     Time constant:>3.2S

     CMRR:>100dB

     Dimention of recording paper: 80mmx20m

     Paper speed: 25mm/s, 50mm/s

     Sensitivity choice:5, 10,20mm/mV.

     Measurement parameters:HR, P-R interval, P-Duration, QRS Duration,Q-T interval, Q-Tc,P Axis,QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)

     Product safety type: Class I, CF. Defibrillation and pacing protection

     Enduring polarization voltage: ± 300mv

     Nosie level:<15uVp-p

     Dimension:130mm(L)× 74mm(W)× 25mm(H)

     Net wight: 2.3KG

7" TFT, touch screen, led backlight
-> Digital isolation technology and signal pro-cessing solution, digital filter
-> Patient managment, name and age and id.
-> Detail analysis report.
-> Multi-language options: Germany, France,Italian, Turkey, etc
-> Built-in lithium rechargeable battery, wide thermall printing system
-> USB and LAN socket.
-> Memory: Built-in memory or mini SD Memory card. Store more than 1000 pieces of archive
-> Auto-measurement, auto-analysis, and auto-interpretation. Specifications:
-> Lead: Standard 12 leads
-> Patient leak current: <10uA
-> Input impedance: >=50M
-> Frequency response:0.05 ~ 150HZ(-3dB)
-> Time constant:>3.2S
-> CMRR:>100dB
-> Dimention of recording paper: 80mmx20m
-> Paper speed: 25mm/s, 50mm/s
-> Sensitivity choice:5, 10,20mm/mV.
-> Measurement parameters:HR, P-R interval, P-Duration, QRS Duration,Q-T interval, Q-Tc,P Axis,QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
-> Product safety type: Class I, CF. Defibrillation and pacing protection
-> Enduring polarization voltage: ± 300mv
-> Nosie level:<15uVp-p
-> Dimension:130mm(L)× 74mm(W)× 25mm(H)
-> Net wight: 2.3KG
