MODEL 132 TOMOGRAPHIC TEST TOOL

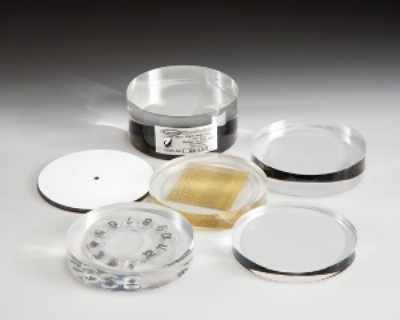

Tomographic Test Tool Model 132 The Gammex 132 Tomographic Test Tool is designed to test the imaging capabilities of the tomographic x-ray system.  Used in conjunction with other Gammex test instruments for measuring radiation output (i.e., kV meters, dosimeters, timers) a complete test of the tomographic x-ray system can be performed.   Features of the Gammex 132: • Determine the location of the cut plane • Determine the thickness of the cut • Test the overall resolution in the cut plane • Test the x-ray exposure uniformity • Determine the path of the beam during exposure,    for both linear and multi-directional units   SPECIFICATIONS Construction Six 9 cm Acrylic Discs (1) . . . . . . . . . . Resolution Disc (1) . . . . . . . . . . Position/Thickness Disc (1) . . . . . . . . . . Uniformity/Beam Path Disc (3) . . . . . . . . . . Acrylic Spacers 1, 2 and 4 cm Size. . . . . . . . . 10x9 cm diameter (4x3.5 in diameter) Weight. . . . . . . .0.9 kg (2 lbs)
