Improves alignment of the radiographic grid and central ray of the x-ray tube and provides increased image contrast,
improved shading in image density, and can reduce unnecessarily increased patient dosage. Problems can occur when the
x-ray tube¡¯s alignment indicators (light/detents) are misadjusted. Additional problems occur if the x-ray tube is tilted or the
grid is installed upside down.
Improves alignment of the radiographic grid and central ray of the x-ray tube and provides increased image contrast,
improved shading in image density, and can reduce unnecessarily increased patient dosage. Problems can occur when the
x-ray tube¡¯s alignment indicators (light/detents) are misadjusted. Additional problems occur if the x-ray tube is tilted or the
grid is installed upside down.

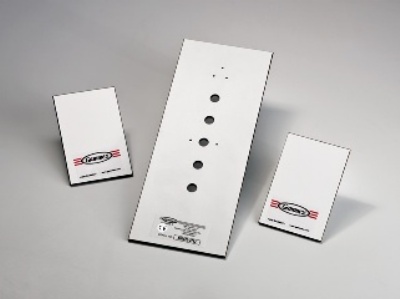

The Gammex 144 Grid Alignment Test Tool is designed to test proper grid alignment with respect to the central ray of the x-
ray tube. Regular quality control testing can help detect misalignments before they present a patient safety issue.
SPECIFICATIONS
Construction...........Three Lead Blockers with Precise Hole Locations
Size. . . . . . . . . . 9x23.5 cm (3.5x9 in)
One large, Two small
Weight. . . . . . . . 0.7 kg (1.5 lbs)
Grid Alignment
Test Tool
Model 144
Improves alignment of the radiographic grid and central ray of the x-ray tube and provides increased image contrast,
improved shading in image density, and can reduce unnecessarily increased patient dosage. Problems can occur when the
x-ray tube¡¯s alignment indicators (light/detents) are misadjusted. Additional problems occur if the x-ray tube is tilted or the
grid is installed upside down.
The Gammex 144 Grid Alignment Test Tool is designed to test proper grid alignment with respect to the central ray of the x-
ray tube. Regular quality control testing can help detect misalignments before they present a patient safety issue.
SPECIFICATIONS
Construction...........Three Lead Blockers with Precise Hole Locations
Size. . . . . . . . . . 9x23.5 cm (3.5x9 in)
One large, Two small
Weight. . . . . . . . 0.7 kg (1.5 lbs)
