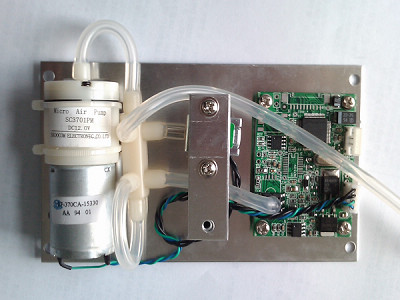

NIBP MODULE MODEL NB001 (MONM-BN001) EVALUATION KIT

The NIBP Module NB001 evaluation Kit includes the following items:

1) The NB001 module;
2) Lemo connector(male);
3) Lemo connector(female);
4) Extended cannula;
5) 2-way cannula commutator;
6) Cuff;
7) Cannula in instrument;
8) Power cable;
9) RS232 cable.

Performance indicators:
 Measuring range
 Adult:
30 ~ 255 mmHg systolic blood pressure
An average of 20 ~ 235 mmHg pressure
15 ~ 220 mmHg diastolic blood pressure
Pulse rate of 30 ~ 240 times / min

 Newborn:
30 ~ 135 mmHg systolic blood pressure
An average of 20 ~ 125 mmHg pressure
15 ~ 110 mmHg diastolic blood pressure
Pulse Rate of 40 ~ 240 times / min

 Measurement time
Adults: up to more than 120 seconds;
Newborn: up to more than 90 seconds;
Restrictions on over-voltage software
Adult:  Less than 290mmHg;
Newborns: no more than 145mmHg;
Hardware over-voltage protection
Adult: 300 ±10 mmHg;
Newborn: 150 ±4 mmHg;

Measuring principle: Oscillometry
Deflation approach: ladder Deflated
The initial inflation pressure value
Adult: 150 mmHg;
Newborn: 70 mmHg;

Sensor zero reset: Prior to each measurement
Resolution: 1 mmHg
Measurement accuracy
Maximum average deviation: no more than ± 5 mmHg;
maximum standard deviation: less than 8 mmHg;
Pressure accuracy instructions: ± 3 mmHg
Leakage: less than 6 mmHg Per minute;
Electrical performance
Voltage: 12 VDC (adapt to the corresponding valve), 5 VDC
Quiescent current: 80 mA
Measurement current: 200 mA
inflated current: 600mA

Environment
Operating Temperature: 0 ~ 55 Celsius degrees
Storage Temperature: -20 ~ 65 Celsius degrees
Humidity Range: 0 ~ 95%, non-condenser
Operation Altitude: -500 m ~ 4600 meters
Life Span: can operate 100,000 blood pressure measurements

Size: 12.6 cm x 6.8 cm x 2.8 cm
Weight: 180 g

Function
1. Numerical calculation: calculate systolic blood pressure, mean pressure, diastolic blood pressure, pulse rate.
2. Automatic measurement mode: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90 minutes.
3. Manual measurement mode: the user needed to manually start a measurement.
4. Calibration mode: the value of continuity in the provision of cuff pressure
5. Measurement unit: mmHg
6. Serial Communication: RS232 port, TTL-level, 4800 baud rate
7. Self checking: selfchecking function available after reset
