Specifically designed for assessment of digital system resolution and verification of CCD stitching
Model 085
Full Field Digital Mammography systems which utilize CCD technology require test tools to monitor the continuity of "stitching" software.
The CIRS Model 085 phantom provides a series of L-shaped line pair targets from 4 to 12 line pair per mm. These targets are contiguously positioned to cover an 18 cm x 24 cm area at midplane in a 1 cm thick tissue equivalent slab.
Visual inspection of the resulting image permits quick and definitive assessment of stitching continuity and system resolution.

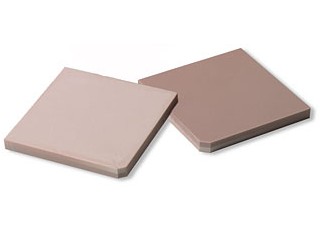

Additional slabs of tissue equivalent material are available for varying thickness and attenuation values.
Phantom Body
Material: BR 50/50 Length: 240 mm Width: 180 mm Height: 10 mm
Target
Tin/Lead construction on Kapton substrate Bar length is five times width of the line grouping Target pattern embedded mid-plane of phantom
Full Field
Digital Phantom
Specifically designed for assessment of digital system
resolution and verification of CCD stitching
Model 085
Full Field Digital Mammography systems which utilize CCD technology require test tools to monitor the continuity of "stitching" software.
The CIRS Model 085 phantom provides a series of L-shaped line pair targets from 4 to 12 line pair per mm. These targets are contiguously positioned to cover an 18 cm x 24 cm area at midplane in a 1 cm thick tissue equivalent slab.
Visual inspection of the resulting image permits quick and definitive assessment of stitching continuity and system resolution.
Additional slabs of tissue equivalent material are available for varying thickness and attenuation values.
