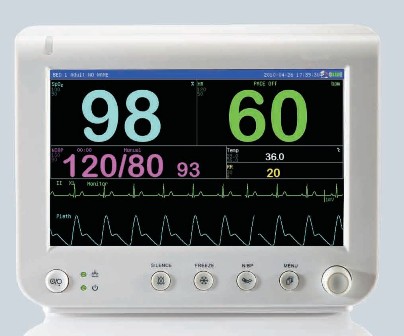

7" color TFT display, up to 4 waveforms
Suitable for adult, pediatric and neonatal patient
One level menu, easy to use
Parameters including ECG/RESP, SpO2 , NIBP, TEMP, Pulse Rate
Maximum 720 hour graphic and tabular trends of all parameters
Built-in recorder and battery
Arrhythmia analysis, ST calculation, Pace analysis
Anti-ESU, anti- defibrillator
Standard network interface, can connect to Central monitor system
Specifications
Size and Weight
size 192×150×91 mm
Weight 1 .2kg
d.c. 16.8V, 1A
2000 mAh 14.8V rechargeable lithium battery
Operating time after full charge is more than 4 hours
Operating time after the first alarm of low battery will be about 5 minutes
Maximum charging time is less than 6 hours.
Network interface standard RJ45 Socket
Trend 720 hours
NIBP review 1000 NIBP events
Wave review 2 hours
Alarm review 200 alarm events
All storage data are non volatile.
Temperature
Working 0 ~ 40 °C
Storage -20 ~ 50°C
Humidity
Working 15% - 90 %
Storage 15% - 90 % (no coagulation)
Atmospheric pressure
Working 86.0 kPa ~ 106.0kPa;
Storage 86.0 kPa ~ 106.0kPa
