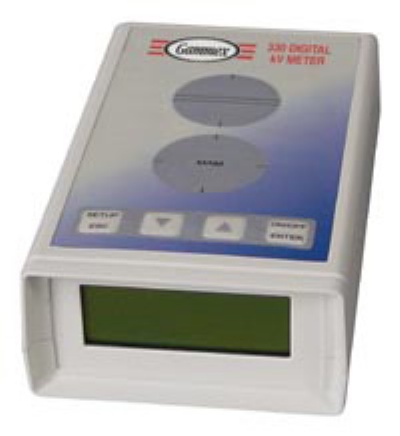

MODEL 330 DIGITAL KV METER

Digital kV Meter   Model 330         The Gammex 330 Digital kV, Dose and Time Meter is a test device for quality control and acceptance testing in radiographic, mammographic and fluoroscopic x-ray systems.  The multipurpose design enables the user to measure kVp, dose and irradiation time.  The meter features built-in auto-start, auto-stop, auto-range and a display reading that automatically rotates by 180° depending on the orientation of the device to accommodate both radiographic or fluoroscopic applications. Features of the Gammex 330: • Measures kVp, dose and time non-invasively • Includes display of the quantity PPV (practical peak voltage) according to IEC 61676 • Compact and light-weight • Easy-to-read LC Display • Can be used for both acceptance testing and routine quality control         SPECIFICATIONS Tube voltage Selectable calculations . . . . . . PPV, max kVp, mean kVp Measuring range. . . . 40 - 150 kV, 22 - 40 kV (MAM) Dose . . . . . . . . . . . 50 ìGy – 50 Gy;                                 150 ìGy – 150 Gy (MAM) Time . . . . . . . . . . . 0.3 ms – 999 s Digital resolution . . . 0.1 kV Accuracy . . . . . . . . ±1 % or ±1.0 kV; ±0.7kV (MAM) Interface . . . . . . . . RS232 and analog kV waveform Power Supply. . . . . . 4 NiMH batteries (AA) Dimensions . . . . . . . 45x95x155 mm (HWD) (1.75x3.75x6 in) Weight . . . . . . . . . . approx. 770 g (1.7 lbs) without batteries
