Features • Foot with soft tissue which simulates muscle • 5 calcaneal inserts which simulate H2O • 5 calcaneal inserts which simulate 200 mg/cm3 density in H2O matrix

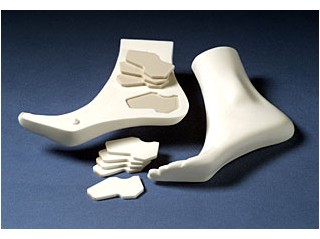

The Model 027 includes 10 calcaneal inserts of varying mineral densities which permit examination of the calcaneus.
The foot itself is made of epoxy resin to simulate muscle soft-tissue.
Phantom is tissue equivalent at diagnostic x-ray energies.
MATERIAL: Epoxy Resin
AREA OF INSERT SIDE PROJECTION: 9.35± .1 cm2
THICKNESS OF EACH INSERT: 5 mm
BONE INSERT DENSITY: 200 mg/cm3
3D Heel Phantom
For DXA Scanners
Tissue Equivalent, Variable Calcaneal Densities
Model 027
Features
?Foot with soft tissue which simulates muscle
?5 calcaneal inserts which simulate H2O
?5 calcaneal inserts which simulate
200 mg/cm3 density in H2O matrix
The Model 027 includes 10 calcaneal inserts of varying mineral densities which permit examination of the calcaneus.
The foot itself is made of epoxy resin to simulate muscle soft-tissue.
Phantom is tissue equivalent at diagnostic x-ray energies.
