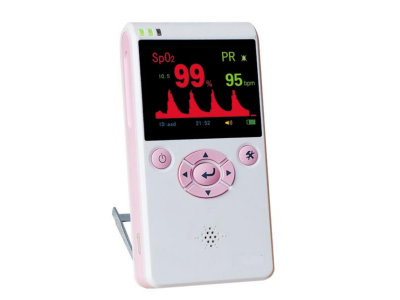

HANDHELD PULSE OXIMETER MODEL MGW-601E2

Feature:

Ø Probe can be used for: adult, child

Ø Can be used in: hospital, home, community medical treatment, sports healthcare, etc.

Ø Can measure SPO2 and PR accurately

Ø SPO2 and PR display, PR waveform and bargraph display

Ø Battery voltage indicator

Ø Friendly Operation Menu for The Function Setting

Ø Backlight and  automatic power-off function for power saving

Ø Pulse sound function

Ø Alarm function; can set upper and lower limits.

Ø interface to Computer, software can analyse, store and print the data.

Ø Function switch used to activate measurement and turn off power; function key for menu setting


■ Small volume(68(L) × 28(W) ×134(H) mm)、light，conveni

----------------------------------------------------------------
Technical Parameters

Ø 2.4' LCD display,resolution324*240 color

Ø SPO2: 35～99％  Pulse Ratio：30～250BPM

Ø Resolution: 1% for SPO2, 1BPM for pulse ratio

Ø Accuracy: ±2% (70％～99％),

                     Unspecified (<70%) for SPO2,

                     ±2BPM or±2% (select larger) for pulse ratio

Ø Power: 3.7V 1100mA（BP-6M） lithium battery

Ø USB port, sync with PC based analysis software.

Ø Can work more than 48 hours continuously

Ø Interference resistance capacity against ambient light and measurement performance at low perfusion
