Features:

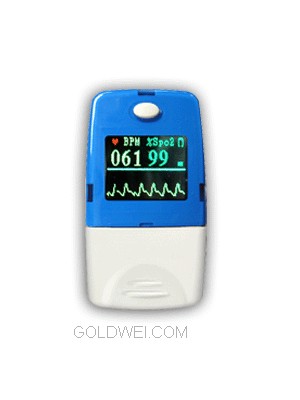

Integrated with SPO2 probe and processing display module
Can be used in: hospital, home, community medical treatment, sports healthcare, etc.
Can measure SPO2 and PR accurately
SPO2 and PR display, PR waveform and bargraph display
Battery voltage indicator
Dual direction display
Low power consumption; shut off automatically when no signal
Small volume(66(L) × 36(W) ×33(H) mm)?light,convenient to carry
Technical Parameters
Display Format: 64k color OLED, resolution 96*64
Spo2: 35~99% Pulse Ratio:30~250BPM
Resolution: 1% for SPO2, 1BPM for pulse ratio
Accuracy: ±2% (70%~99%),
unspecified (<70%) for SPO2,
±2BPM or±2% (select larger) for pulse ratio
Power: 1.5V (AAA size) alkaline batteries × 2
Can work more than 12 hours continuously
Interference resistance capacity against ambient light and measurement performance at l ow perfusion
