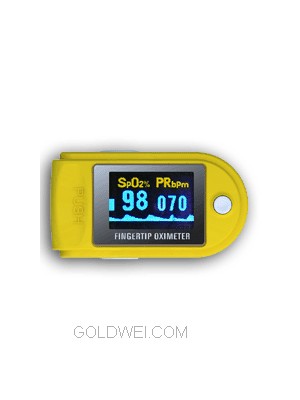

MODEL CMS50D FINGERTIP OXIMETER

Features

     Integrated with SPO2 probe and processing display module.


     Can be used in: hospital, home, community medical treatment, sports healthcare, etc.


     Can measure SPO2 and PR accurately


     SPO2 and PR display, PR waveform and bargraph display


     Battery voltage low indication


     Four directions and six modes


     Four levels adjustable brightness


     Low power consumption; shut off automatically when no signal


     Small volume(57(L) × 31(W) ×32(H) mm)?light,convenient to carry

Technical Parameters


     1.3' double Color OLED display, resolution 160*64


     Spo2:35~99% Pulse Ratio:30~250BPM


     Resolution: 1% for SPO2, 1BPM for pulse ratio


     Accuracy: ±2% (70%~99%),
unspecified (<70%) for SPO2,
±2BPM or±2% (select larger) for pulse ratio


     Power: 1.5V (AAA size) alkaline batteries × 2


     Can work more than 30 hours continuously


    Interference resistance capacity against ambient light and measurement performance at

low perfusion

Optional color
