ITEM DETAILS |
 |
|
|

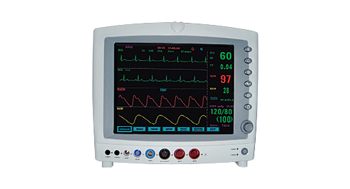

G3D PATIENT MONITOR |
| Displayer: 12.1" color TFT LCD screen with maximum 8-waveform display. Adjusting of lightness continuously make patient more comfortable in midnight,CE approved.
|
|
Model Number:
G3D
GOLDWEI Item No.:
PMGM-G3D
|
|
|
|
Features
◇ Displayer: 12.1" color TFT LCD screen with maximum 8-waveform display.
◇ Battery: Rechargeable high-energy built-in battery
◇ Advanced streamline outline design, portable, compact, lightweight
◇ Operating menu with multi-language interface selection: English, Spanish, Portuguese, Chinese, French, Arabic, Russian, etc.
◇ Easy operation with user friendly menu structure design and rotary dial
◇ Against electrosurgical interference and defibrillation and no need to disconnect the monitor from the patient in process of defibrillating.
◇ WAN communication function to network with central monitoring system and make long-distance monitoring, diagnosis, maintenance and software upgrade possible
◇ Optional built-in wireless networking function
◇ Support external printer to record graph and trend
◇ Intelligent audio and visual comprehensive alarm
◇ In-hospital applications include emergency pre-and post-operative care, ambulatory surgery, intermediate care/step down units, labor and delivery, and hospital-based special procedure areas.
◇ Suitable for use in physicians’ offices, clinics, outpatient surgical centers, extended care facilities and other patient care areas, which of require affordable monitoring
Standard configuration: ECG, HR, PR, SpO2, ST analysis, RESP*2 (RA-LL impedance and nasal cavity), NIBP (with venous punch), TEMP*2(surface and rectal type), Drug dose calculation.
Optional configuration: Wireless connection, Recorder and ETCO2, 2-IBP
Technical Parameter
|
◆Non-invasive blood pressure |
◆Temperature |
|
Measurement type:
adult, pediatric, neonate |
Measurement range:25.0℃-45.0℃ |
|
Measurement
range: |
Systolic
Diastolic
Mean |
4.0 - 37.0 kPa
1.3 - 33.0 kPa
2.6 - 35.0 kPa |
Accuracy: ± 0.1 ℃ |
|
Accuracy : ± 0.4 kPa or ± 2% |
Resolution: 0.1 ℃ |
|
Resolution: 0.1 kPa |
response time: ≤ 3 min. |
|
Protection: over pressure |
|
|
|
|
◆ECG |
◆Respiration Rate |
|
Input: 5 wires ECG cable |
Measurement range: 0 - 120 BPM（adult） |
|
Lead section:
Ⅰ,Ⅱ,Ⅲ/ aVR, aVL, aVF/ V |
Accuracy: ± 1 BPM or 5 % |
|
Gain（mm/mV）:
1/4，1/2，1，2，4 |
Resolution: 1 BPM |
|
Frequency response: |
Diagnosis
Monitor
Surgery |
0.05 - 100Hz
0.5 - 40 Hz
1.0 - 25 Hz |
◆CO2 |
|
Sweep speed (mm/sec):
12.5, 25, 50 |
Measurement range:
0 %-10.0 % (ins CO2 and et CO2) |
|
Heart rate range: 30-254 BPM |
Accuracy:
± 2 mm Hg (＜ 5 % Measurement value) |
|
Heart rate accuracy: ± 1 % |
10 % (＞ 5 % Measurement value) |
|
ST segment deviation analysis:
-0.8~+0.8mV |
◆Pulse oximetry |
|
ST accuracy: ±0.02mv |
SpO2 measurement range: 0 - 100 % |
|
Invasive blood pressure |
Resolution: 1 % |
|
Measurement range:
0~40kPa (0~300mmHg) |
Pulse measurement range: 30- 254BPM |
|
Channel: 2 channel |
Accuracy: ± 2 % |
|
Transducer sensitivity: 5MV/V/mmHg |
Resolution: 1 BPM |
|
Unit display: kPa or mmHg selectable
◆Environment
|
◆Power requirements |
|
Operation |
Storage |
|
Input: 98～260 V AC, 50/60Hz |
Temperature |
0.5 - 40 ℃ |
-20 - 50 ℃ |
|
Consumption: ≤ 80VA |
Relative humidity |
≤ 80% |
≤ 90% |
|
|
|
|
◆Safety standard: IEC 60601-1 |
|
|
Quality System: ISO13485: 2003 |
|
|
CE approved |
| |
|
Standard Accessory
í CO2 sample line
í SPO2 sensor
í Operator manual
