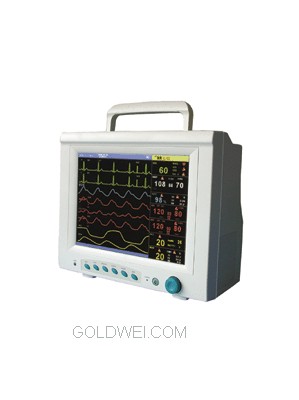

CMS9000 MULTI-PARAMETER MONITOR FOR ECG, NIBP, SPO2, RESPIRATION, TEMPERATURE, PULSE RATE

Feature:

Color TFT Screen, waveform up to 8 channels

Light and portable with build-in rechargeable battery

UP to 10 kinds of monitor parameters

Arrhythmia analysis, pace-marker detection and S-T Segmentanalysis

72 hour storage and review of trend grams and tables, 40 second review of olographic waveforms.

Built-in recorder(option)

All-round monitor of adult,pediatric and neonatal.

Electrosurgical unit and defibrillation protected.

Standard parameters: ECG, NIBP, SPO2, Respiration, Temperature, Pulse rate

Option parameters: EtCO2, CO, IBP, Thermal Printer

ECG

     5-lead or 3-lead selectable

     Input: 5-lead: RA; LA; RL; LL; V or R; L; N; F; C

     Lead selection: I; II; III; avR; avL; avF; Vx; CAL

     Gain selection: 12.5mm/s, 25mm/s, 50mm/s

     Accuracy: ?bpm or ?%, whichever is greater

     Protection: Withstand 4000VAC/50Hz voltage in isolation against electrosurgical and defibrillation

     Calibration signal: 1mV 3%

     Operation modes: Diagnostic, Monitor, Surgery

     Alarm range: Adult: 15-300bpm

     Pediatric/Neonatal: 15-350bpm

     Alarm range: -2.0mV~2.0mV

     S-T detection: YES, Arrhythmia analysis: YES

     Alarm: YES, audible and visual alarm, alarm events recallable

NIBP

     Method: Oscillometry

     Operation modes: Manual/Automatic/STAT

     Measurement unit: mmHg/KPa selectable

     Measurement types: Systolic, Diastolic, Mean

     Measurement range: Adult: 10-270mmHg

     Over-pressure protection: YES

     Resolution: 1mmHg

     Accuracy: Mean error and standard deviation per ANSI/AAMI SP-10

     Alarm: Systolic,Diastolic,Mean

SPO2

     Measurement range: 0-100%

     Accuracy: ?digit (70~100%);

     0~69% unspecified

     Alarm range: 0-100%

Respiration

Method: RA-LL impedance

Pediatric/Neonatal: 6-150rpm

Alarm range: Adult: 6-120rpm

Pediatric/Neonatal: 6-150rpm

Apnea alarm: YES Temperature

Resolution: 0.1?

Channel: Dual-channel

Alarm range: 0-50?

Option:

EtCO2

Measurement Mode: Side-stream or mainstream

Measurement range: EtCO2: 0-99mmHg

Accuracy: CO2 concentration

Apnea alarm: YES

Method: Thermo-dilution

Measurement range: CO: 0.1-20 lit./min.

IBP

Channel: 2 channels

Pressure transducer: Sensitivity: 5( mV/V/mmHg)

Transducer sites: ART, PA, CVP, RAP, LAP, ICP

Alarm range: -10~300mmHg

-> Color TFT Screen, waveform up to 8 channels
-> Light and portable with build-in rechargeable battery
-> UP to 10 kinds of monitor parameters
-> Arrhythmia analysis, pace-marker detection and S-T Segmentanalysis
-> 72 hour storage and review of trend grams and tables, 40 second review of olographic

wavefo rms.
-> Built-in recorder(option)
-> All-round monitor of adult ,pediatric and neonatal.
-> Electrosurgical unit and defibrillation protected
-> Standard parameters: ECG, NIBP, SPO2, Respiration, Temperature, Pulse rate
-> Option parameters: EtCO2, CO, IBP, Thermal Printer ECG
-> 5-lead or 3-lead selectable
-> Input: 5-lead: RA; LA; RL; LL; V or R; L; N; F; C
-> Lead selection: I; II; III; avR; avL; avF; Vx; CAL
-> Gain selection: 12.5mm/s, 25mm/s, 50mm/s
-> Accuracy: ?bpm or ?%, whichever is greater
-> Protection: Withstand 4000VAC/50Hz voltage in isolation against electrosurgical and defibrillation
-> Calibration signal: 1mV?%
-> Operation modes: Diagnostic, Monitor, Surgery
-> Alarm range: Adult: 15-300bpm
-> Pediatric/Neonatal: 15-350bpm
-> Alarm range: -2.0mV~2.0mV
-> S-T detection: YES, Arrhythmia analysis: YES
-> Alarm: YES, audible and visual alarm, alarm events recallable NIBP
-> Method: Oscillometry
-> Operation modes: Manual/Automatic/STAT
-> Measurement unit: mmHg/KPa selectable
-> Measurement types: Systolic, Diastolic, Mean
-> Measurement range: Adult: 10-270mmHg
-> Over-pressure protection: YES
-> Resolution: 1mmHg
-> Accuracy: Mean error and standard deviation per ANSI/AAMI SP-10
-> Alarm: Systolic,Diastolic,Mean SpO2
-> Measurement range: 0-100%
-> Accuracy: ?digit (70~100%);
-> 0~69% unspecified
-> Alarm range: 0-100% Respiration
-> Method: RA-LL impedance
-> Pediatric/Neonatal: 6-150rpm
-> Alarm range: Adult: 6-120rpm
-> Pediatric/Neonatal: 6-150rpm
-> Apnea alarm: YES Temperature
-> Resolution: 0.1?
-> Channel: Dual-channel
-> Alarm range: 0-50? Option: EtCO2
-> Measurement Mode: Side-stream or mainstream
-> Measurement range: EtCO2: 0-99mmHg
-> Accuracy: CO2 concentration
-> Apnea alarm: YES CO
-> Method: Thermo-dilution
-> Measurement range: CO: 0.1-20 lit./min. IBP
-> Channel: 2 channels
-> Pressure transducer: Sensitivity: 5( mV/V/mmHg)
-> Transducer sites: ART, PA, CVP, RAP, LAP, ICP
-> Alarm range: -10~300mmHg
