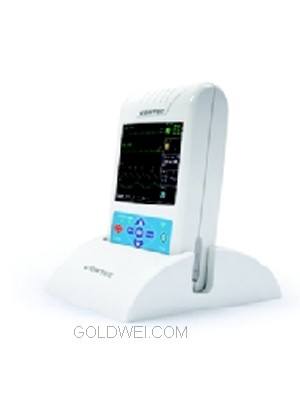

MODEL PM70 PATIENT MONITOR MEASURING NIBP, SPO2 & PULSE RATE

Features:

-> Routine Check Mode and Continuous Monitoring Mode
-> Data Graph and Trend Table Review
-> Rich Analysis Report
-> Sync with PC based Sofrware (WinXP and WinVista)
-> lightweight and easy-to-use portable unit
-> Built-in NIBP module
-> Automated & on-demand NIBP measurements
-> User or system-defined inflation pressure
-> ECG is optional

NIBP:

-> Performance Specifications
-> Display:3.5" Color TFT
-> Resolution:320x240
-> Display Mode:Standard face, Waveform face
-> Indicator:Power indicator light, Alarm sound, Pluse tone
-> Interface:socket for connecting sensors and sockets for communication cables
-> Power Supply:DC 5V, <300mA
-> Battery:Builtin Li-Polymer, 2 hours for charging, 3 hours
-> for continous working.8 hours for standby mode
-> Trend Graph:Resolution from 1s, 5s, 10s. Maximum time 96 hours.
-> Trend Table:Resolution from 1s, 5s, 10s. Review up to 1000 items.
-> Alarm:Ajustable High and Low limits. Three level audible and vistual alarm
-> User Configuration:All the color of parameters and waves can be set according to user's willingTechnical specifications:
-> Safety
-> Meet the requirment of IEC60601 series
-> Type of Protection:Class II with internal electirc power supply
-> Degree of Protection:BF
-> Dimention and Weight
-> Dimention:145(W)x95(H)x37(D)mm
-> Weight:400g(with battery)
-> Operation Environment:
-> Temperature:0?~ +40?
-> Humidity:15% ~ 95%
-> Storage Environment:
-> Temperature:-20?~ +60?
-> Humidity:10% ~ 95%
-> Patient Range
-> Neonate ,Pediatric and Adult

SPO2:

-> Measurement Range:0 ~ 100%
-> Resolution:1%
-> Accuracy:±2%(70%~100%, Adult/Pediatric, non-motion) ±3%(70%~100%, Neonate, non-motion)0% ~ 69% unspecified
-> Alarm Range:0% ~ 100%
-> Refreshing Rate:1s

Pulse Rate:

-> Measurement Range:25 ~ 250 bpm
-> Resolution:1bpm
-> Accuracy:±3 bpm (non-motion)
-> Alarm Range:25 ~ 250 bmp
-> Refreshing Rate:1s

NIBP:

-> Method:Oscillometry
-> Mode:Manual/Auto/Contiuous
-> Measurement Range:25 ~ 260mmHg
-> Atuo Measure Interval:5, 10, 15, 30, 45, 60, 90 ¡öminutes
-> Resolution:1mmHg
-> Overpressure Protection: 300mmHg
-> Alarm range: 25 ~260mmHg
