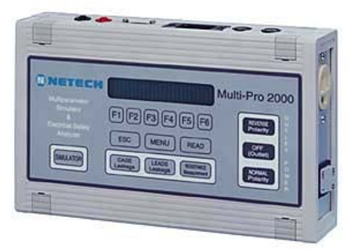

ELECTRICAL SAFETY ANALYZERS-MULTI-PRO 2000 - ELECTRICAL SAFETY ANALYZER / 12 LEAD ECG SIMULATOR

The instrument tests wall outlet polarity and measures line voltage, chassis resistance, chassis leakage current, and leads leakage current. It also performs lead isolation testing and point to point testing. Calibrated test points are available for verfying its performance.

The ECG Simulator displays a normal sinus rhythm waveform with 13 amplitude and 14 rate selections. Square, Sine, and Triangle waveforms for performance testing are available with 14 frequency and 13 amplitude selections.

The Multipro can down load test results through its RS-232 Port to any computer or serial printer.

The MULTI-PRO 2000, Electrical Safety Analyzer is a light weight, versatile tool that easily performs electrical safety testing to the requirements of both in-house and field biomedical service technicians.

Features

Micro Processor Controlled

Menu Operated

Compact, Lightweight, Rugged

Accurate, and Reliable

12 Lead ECG and Performance Waveforms

20 Ampere Rating

Quick and Easy to Operate

Kelvin Cable

RS 232 Port

Specifications

Leakage Meter

Line Voltage

Range: 1 to 300 V

Accuracy: +/-2% + 1 V

Leakage Current

Range: 0 to 2500 microAmp autoranging

Accuracy: DC to 100 KHz: +/- 2% FS +/- 1 Digit

100 KHz to 1 MHz: +/- 4% FS +/- 1 Digit

Resistance

Range: 0 to 2500 milliOhm, auto ranging

Accuracy: +/- 2% FS +/- 1 Digit

Environmental

Operating Temperature:

59 to 95 degrees F (15 to 35 degrees C)

StorageTemperature:

32 to 122 degrees F (0 to 50 degrees C)

Controls

On Off Power Switch

Sixteen Tactile Feel Keys

Ten Color Coded ECG Jacks

Two Input Jacks

RS 232 Serial Port connection

ECG Simulator

12 Lead Normal Sinus Rhythm and Pulse

Clinical Waveforms:

Amplitude: 13 selectable steps 0.1, 0.2, 0.3, 0.4, 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0 and 4.5 mV

Rate: 25 selectable steps 0.1, 0.2, 0.3, 0.4, 0.5, 1.0, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55 and 60 Hz

Performance Waveforms:

Square, Triangle, and Sine

Amplitude: 13 selectable steps 0.1, 0.2, 0.3, 0.4, 0.5, 2.0, 2.5, 3.0, 3.5, 4.0 and 4.5 mV

Rate: 25 selectable steps 0.1, 0.2, 0.3, 0.4, 0.5, 1.0, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55 and 60 Hz

Display

2 Line 48 character Display

Power Requirements

110 VAC 50-60 Hz, 20 A

220 VAC 50-60 Hz, 10A

Physical Dimensions

Size:10.25 x 6.25 x 2.5 inches (26.00x 15.9 x 6.4 cm)

Weight: 4 lbs (1.8 kg)
