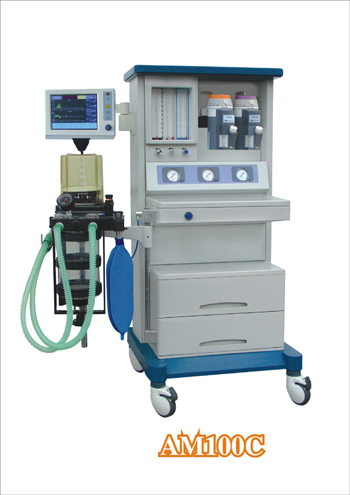

Main Technical Data
- Driven mode: Pneumatic control electrical control
- Display: 10.4 inch color LCD display
- Ventilation mode: VCV, PCV, PSV, SIMV, Standby, Manual
- Safety valve pressure limit: �� 6kPa
- Power supply: AC 220 V �� 10%, 50 Hz �� 1%
Monitoring parameters:
Tidal volume, Minute volume, Respiratory rate, Airway pressure (Ppeak, Pplat, PEEP), O2 concentration, Waveform (P-T, F-T, V-T, P-V, F-V loop)
Alarms:
Tidal volume, Minute volume, Respiratory rate, Airway pressure, O2 concentration, Apnea, Power supply failure, Battery low
Main unit:
- Mode: Semi-open, semi-closed or closed system
- Gas supplies: O2/N2O/AIR 0.3MPa to 0.6MPa
- Flowmeter: O2/N2O/Air five tube flowmeter, 0 to 10 L/min (With inter-lock protection devices ensuring the oxygen concentration > 25%)
- O2 flush: 35 to 75 L/min
- O2 deficiency alarm: Audible alarm for at least 7 seconds
- Respiration loop: Good airtight, easy for using, easy for cleaning and sterrilizing
Vaporizer:
- Enflurance, Isoflurane or fluothane
- Flow range: 0.2 to 15 L/min
- Concentration: 0 to 5.0%
- Working temperature: 15 ��c to 35 ��c
