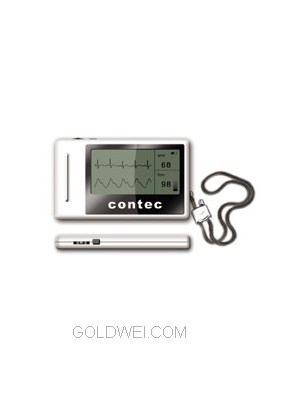

MODEL 8000C/D TELENETRY ECG (1/3CHANNEL)

Adopts synchronized sampling and analyzing technology. Up to eight patients

can be monitored.

Alarm can be triggered by abnormal HR, ST, Pause.

Advanced data review systems, make you review the entire data at

convenience.

Powerful case managment provides you the easy way to search, modify and

delete the case. ECG AcquisitionHR range: 30 to 300 bmpBandwidth: 0.5-40Hz(-3dB)Input impedance: =10MO Dynamic input range:± 3 mVCMRR: =80 dBSample rate: 200 samples/secondADC Accuracy: 12 bitECG gain select: 5,10,20mm/mVOption: Pulse Oxmeter Power supplyTransmitter: 3.0 VDC, Two 1.5V Alkaline Battery, size AA (R6); Power consumption Approx. 90mW; Operating time: =36 hours (with recommended alkaline batteries)Receiver: 5.0 VDC from the USB; Power consumption less than 400mW.

-> Adopts synchronized sampling and analyzing technology. Up to eight patients

can be monitored.
-> Alarm can be triggered by abnormal HR, ST, Pause.
-> Advanced data review systems, make you review the entire data at

convenience.
-> Powerful case managment provides you the easy way to search, modify and

delete the case. ECG AcquisitionHR range: 30 to 300 bmpBandwidth: 0.5-40Hz(-3dB)Input impedance: =10MO Dynamic input range:± 3 mVCMRR: =80 dBSample rate: 200 samples/secondADC Accuracy: 12 bitECG gain select: 5,10,20mm/mVOption: Pulse Oxmeter Power supplyTransmitter: 3.0 VDC, Two 1.5V Alkaline Battery, size AA (R6); Power consumption Approx. 90mW; Operating time: =36 hours (with recommended alkaline batteries)Receiver: 5.0 VDC from the USB; Power consumption less than 400mW.

There are no documents download yet.
