TLC5000 12 CHANNEL HOLTER ECG MONITORING SYSTEM

The TLC5000 12 Channel Holter ECG Monitoring System is composed of the ECG recorders, a computer system,  a laser printer and the software. The recorder has build-in flash storage media that increases its memory capacity. The sampling rate of 1000 sampling/sec has improved the quality of waveform. The software of the system is checked by AHA and MIT data, which ensure its accuracy.

Features:

     Windows software interface

     Quick and accurate analyzing system

     Special editing system of R point

     Perfect analysis function of ST segment

     The analysis function of T wave of allchannels and T wave trend graph

     Review of the ECG trend graph

     The analysis system of HR variability, providing the regular SDNN, SDANN, RMSSD, LF, HF, time domain, and frequency domain

     QT analysis and QT trend graph

     Acquire pacing ECG directly without separate channel, also have the functions of VCG,LPG, high frequency ECG, FCG. (option)

Recorder:

     12 Channel Synchronized ECG Acquisition

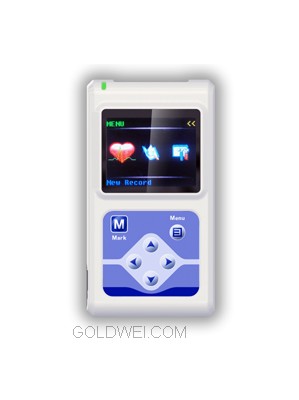

     Small ECG recorder with OLED color screen which can display real time ECG waveform and review storage data.

     Capacity is up to 2G

     Selectable sampling rate, 200, 500, 1000 sampling/sec

     Sampling accuracy : 12 bit

     Build-in FLASH storage media, which can refrain the flash card fromdamageby repeatedly inserted and pull out

     USB interface

Inside The Box

     1 Holter recorder

     1 CD of software

     10 pieces of patient cable

     10 pieces of disposable ECG sensor

     1 porch for hanging recorder

     1 USB cable for data download

     Instruction Manual

     1 year warranty
