Determine the threshold contrast characteristics and monitor performance of a radiographic or fluoroscopic system and

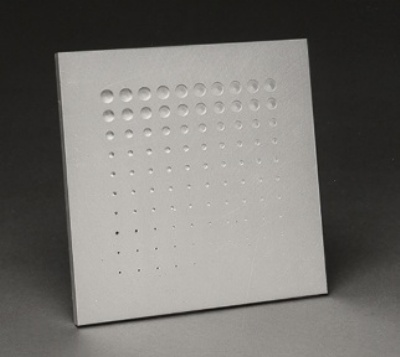

monitor performance on a routine basis with the Model 1151 Contrast/Detail Phantom. The Gammex 1151 is an
aluminum plate with a 10x10 matrix of holes. All of the holes in a given row have a constant depth. All of the holes in a given
column have a constant diameter. A ten-point contrast-detail curve is constructed by observing the shallowest depth hole
that can be seen for each hole diameter.
Model Number:Model 1151 GOLDWEI Item No.:UPGX-1151
Determine the threshold contrast characteristicsand monitor performance of aradiographic or fluoroscopic system and
monitorperformance on a routine basis with theGammex 1151 Contrast/Detail Phantom. The Gammex 1151 is an
aluminum plate with a 10x10matrix of holes. All of the holes in a given row have aconstant depth. All of the holes in a given
column havea constant diameter. A ten-point contrast-detail curveis constructed by observing the shallowestdepth hole
that can be seen for each hole diameter.
SPECIFICATIONS
Construction . . . . 6061 Aluminum
Hole Depth . . . . . 0.13 to 2.29 mm
Hole Diameter. . . 0.58 to 7.93 mm
Size. . . . . . . . . . 18x18x1.3 cm
Weight. . . . . . . . 1.0 kg / 2.5lbs
Radiographic
Contrast/Detail Phantom
Model 1151
Determine the threshold contrast characteristics and monitor performance of a radiographic or fluoroscopic system and
monitor performance on a routine basis with the Gammex 1151 Contrast/Detail Phantom. The Gammex 1151 is an
aluminum plate with a 10x10 matrix of holes. All of the holes in a given row have a constant depth. All of the holes in a given
column have a constant diameter. A ten-point contrast-detail curve is constructed by observing the shallowest depth hole
that can be seen for each hole diameter.
