Meets MQSA requirements. The Mammographic Accreditation Phantom was designed to test the performance of a mammographic system by a quantitative evaluation of the system¡¯s ability to image small structures similar to those found clinically. Objects within the phantom simulate calcifications, fibrous calcifications in ducts, and tumor masses.
The required standard for image quality evaluations

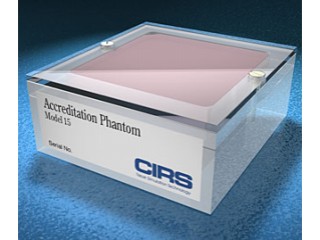

Model 015
Meets MQSA requirements. The Mammographic Accreditation Phantom was designed to test the performance of a mammographic system by a quantitative evaluation of the system¡¯s ability to image small structures similar to those found clinically. Objects within the phantom simulate calcifications, fibrous calcifications in ducts, and tumor masses.
The Phantom is designed to determine if your mammographic system can detect small structures that are important in the early detection of breast cancer. Test objects within the phantom range in size from those that should be visible on any system to objects that will be difficult to see even on the best mammographic systems.
The 4.4 cm thick Mammograhpic Phantom is made of a 7 mm wax block insert containing 16 sets of test objects, a 3.4 cm (approx. 1-3/8") thick acrylic base, and a 3 mm (1/8") thick cover. All of this together approximates a 4.2 cm compressed breast of average glandular /adipose composition. Included in the wax insert are aluminum oxide (Al2O3) specks to simulate micro-calcifications. Six different size nylon fibers simulate fibrous structures and five different size lens shaped masses simulate tumors.
Phantom includes a 4 mm acrylic step wedge, operating instructions, faxitron x-ray image and magnifying lens.
Phantom Wax Insert
FIBERS 1. 1.56 mm nylon fiber 2. 1.12 mm nylon fiber 3. 0.89 mm nylon fiber 4. 0.75 mm nylon fiber 5. 0.54 mm nylon fiber 6. 0.40 mm nylon fiber
MASSES 12. 2.00 mm (thickness) mass 13. 1.00 mm (thickness) mass 14. 0.75 mm (thickness) mass 15. 0.50 mm (thickness) mass 16. 0.25 mm (thickness) mass
SPECKS 7. 0.54 mm AI2O3 speck 8. 0.40 mm AI2O3 speck 9. 0.32 mm AI2O3 speck 10. 0.24 mm AI2O3 speck 11. 0.16 mm AI2O3 speck
Phantom Body MATERIAL: acrylic LENGTH: 10.8 cm WIDTH: 10.15 cm DEPTH: 4.4 cm
Mammographic
Accreditation Phantom
The required standard for
image quality evaluations
Model 015
Meets MQSA requirements. The Mammographic Accreditation Phantom was designed to test the performance of a mammographic system by a quantitative evaluation of the system¡¯s ability to image small structures similar to those found clinically. Objects within the phantom simulate calcifications, fibrous calcifications in ducts, and tumor masses.
The Phantom is designed to determine if your mammographic system can detect small structures that are important in the early detection of breast cancer. Test objects within the phantom range in size from those that should be visible on any system to objects that will be difficult to see even on the best mammographic systems.
The 4.4 cm thick Mammograhpic Phantom is made of a 7 mm wax block insert containing 16 sets of test objects, a 3.4 cm (approx. 1-3/8") thick acrylic base, and a 3 mm (1/8") thick cover. All of this together approximates a 4.2 cm compressed breast of average glandular /adipose composition. Included in the wax insert are aluminum oxide (Al2O3) specks to simulate micro-calcifications. Six different size nylon fibers simulate fibrous structures and five different size lens shaped masses simulate tumors.
Phantom includes a 4 mm acrylic step wedge, operating instructions, faxitron x-ray image and magnifying lens.
