The phantom provides a good representation of breast tissue, thereby making it close to a real-life learning experience.
The automated stereotactic breast biopsy procedure depends on several variables for accurate needle placement. Use of
the Model 164A provides technologists and physicians with the training needed to be confident in performing stereotactic
procedures.
Model Number:Model 164A GOLDWEI Item No.:MMGX-164A
The phantom provides a good representation of breast tissue, thereby making it close to a real-life learning experience.
The automated stereotactic breast biopsy procedure depends on several variables for accurate needle placement. Use of
the Gammex 164A provides technologists and physicians with the training needed to be confident in performing stereotactic
procedures.

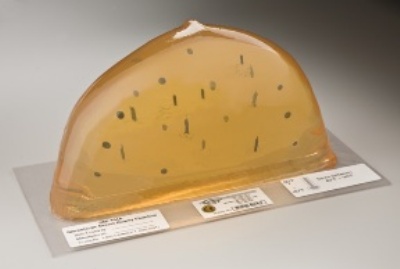

The phantom is made of a clear gel encased in a soft vinyl for easy compression and a skin-like resistance to needle
insertion. Embedded in the gel are 20 to 25 radiopaque lesions ranging in size from 2 to 5 mm. The 3 and 5 mm gel lesions
are used for practicing core biopsies and the 2 mm liquid lesions allow for the practice of fine needle aspiration and tests
the accuracy of the biopsy system and the operator.
SPECIFICATIONS
Construction . . . . Gel with attenuation properties similar to breast tissue.
Outer casing . . . . Vinyl Radiopaque
Lesions . . . . . . . 2 to 5 mm
Solid Gel for core biopsy
Liquid dye for fine needle aspiration
Compressible within biopsy instrument
Stereotactic Breast Biopsy Phantom
Model 164A
The phantom provides a good representation of breast tissue, thereby making it close to a real-life learning experience.
The automated stereotactic breast biopsy procedure depends on several variables for accurate needle placement. Use of
the Gammex 164A provides technologists and physicians with the training needed to be confident in performing stereotactic
procedures.
The phantom is made of a clear gel encased in a soft vinyl for easy compression and a skin-like resistance to needle
insertion. Embedded in the gel are 20 to 25 radiopaque lesions ranging in size from 2 to 5 mm. The 3 and 5 mm gel lesions
are used for practicing core biopsies and the 2 mm liquid lesions allow for the practice of fine needle aspiration and tests
the accuracy of the biopsy system and the operator.
