WATER EQUIVALENT MINI PHANTOM MODEL 670 AND 670S - PERMITS PRECISE EVALUATION OF SCATTER
The Water Equivalent Mini Phantom for Radiotherapy eliminates scatter radiation and X-Ray beam electron contamination during the ion chamber measurements at a reference depth of 10 cm. Phantom material is Plastic Water?and precise machining improves the dosimetric accuracy and reliability of LINAC beam MU calibrations.
Model Number:Model 670 and 670S GOLDWEI Item No.:RTCS-670/670S
The Water Equivalent Mini Phantom for Radiotherapy eliminates scatter radiation and X-Ray beam electron contamination during the ion chamber measurements at a reference depth of 10 cm. Phantom material is Plastic Water® and precise machining improves the dosimetric accuracy and reliability of LINAC beam MU calibrations.
The Phantom satisfies the requirements of ESTRO Booklet 3 “Monitor unit calculation for high energy photon beams” for Output, Volume-Scatter and Scatter-Primary Ratio measurements.

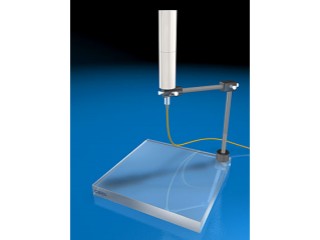

The Model 670 provides an excellent tissue simulation and opportunity of true dose comparison with the 30 x 30 cm Plastic Water® slab phantom. By positioning the ion chamber at a reference depth of 10 cm, the Mini Phantom allows the physicist to isolate and investigate the influence of scatter radiation on a reference dose measured in a slab phantom. The Model 670-S Mini-Phantom stand allows for vertical or horizontal postioning of a .6cc Farmer and smaller diameter chambers. Precise three axis rotation improves measurement accuracy.
Water Equivalent
Mini Phantom
Permits precise evaluation of scatter
Model 670 & 670S
The Water Equivalent Mini Phantom for Radiotherapy eliminates scatter radiation and X-Ray beam electron contamination during the ion chamber measurements at a reference depth of 10 cm. Phantom material is Plastic Water?and precise machining improves the dosimetric accuracy and reliability of LINAC beam MU calibrations.
The Phantom satisfies the requirements of ESTRO Booklet 3 “Monitor unit calculation for high energy photon beams?for Output, Volume-Scatter and Scatter-Primary Ratio measurements.
The Model 670 provides an excellent tissue simulation and opportunity of true dose comparison with the 30 x 30 cm Plastic Water?slab phantom. By positioning the ion chamber at a reference depth of 10 cm, the Mini Phantom allows the physicist to isolate and investigate the influence of scatter radiation on a reference dose measured in a slab phantom. The Model 670-S Mini-Phantom stand allows for vertical or horizontal postioning of a .6cc Farmer and smaller diameter chambers. Precise three axis rotation improves measurement accuracy.
