Item Details   ITEM DETAILS

DOPPLER PHANTOM MODEL 453 WITH C-FLEX TUBES

Specifications: Attenuation 0.5 dB/cm*MHz +/- 0.05 dB/cm*MHz at 5 MHz Speed of sound 1490 m/sec +/- 15 m/sec at 20 - 25 degree C Backscattering: not specified. Density 1031 kg/m3 +/- 20 kg/m3 Diagonal tube: C-flex, 8 mm inner diameter, wall 1.6 mm, angle 35 degree, stenosis 3 mm Circular tube : C-flex, 3.2 mm inner diameter, wall 0.8 mm. Prescription for Preservative Fluid -500 ml Distilled Water -1.0 g Na-Benzoate -0.5 g Na2EDTA

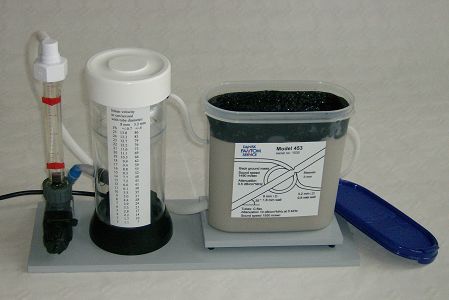

DOPPLER PHANTOM MODEL 453 WITH C-FLEX TUBES
Model Number: Model 453
GOLDWEI Item No.: UPDF-453


Specifications

Features

Documents

Specifications:

Attenuation 0.5 dB/cm*MHz +/- 0.05 dB/cm*MHz at 5 MHz

Speed of sound 1490 m/sec +/- 15 m/sec at 20 - 25 degree C

Backscattering: not specified.

Density 1031 kg/m3 +/- 20 kg/m3

Diagonal tube: C-flex, 8 mm inner diameter, wall 1.6 mm, angle 35 degree, stenosis 3 mm

Circular tube : C-flex, 3.2 mm inner diameter, wall 0.8 mm.

Prescription for Preservative Fluid

-500 ml Distilled Water

-1.0 g  Na-Benzoate

-0.5 g  Na2EDTA
Specifications: Attenuation 0.5 dB/cm*MHz +/- 0.05 dB/cm*MHz at 5 MHz Speed of sound 1490 m/sec +/- 15 m/sec at 20 - 25 degree C Backscattering: not specified. Density 1031 kg/m3 +/- 20 kg/m3 Diagonal tube: C-flex, 8 mm inner diameter, wall 1.6 mm, angle 35 degree, stenosis 3 mm Circular tube : C-flex, 3.2 mm inner diameter, wall 0.8 mm. Prescription for Preservative Fluid -500 ml Distilled Water -1.0 g Na-Benzoate -0.5 g Na2EDTA

There are no documents download yet.
