Features:

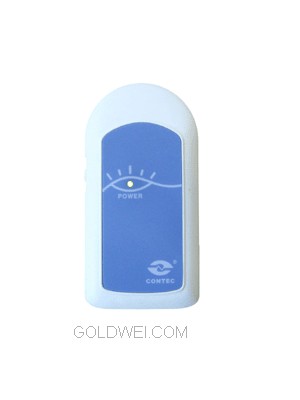

Baby Sound A Fetal Doppler is a safe and easy to use device that has been specially designed for use at home, allowing pregnant women to listen to their unborn baby's heart beat, movements and hiccups from as early as 10 to12 weeks. It is suitable for expectant mother to carry out regular checks on her baby in between routine hospital checks. It can not only reduce the expectant mother’s anxiety but also allow other members of the family to listen to the baby heartbeat. This portable device is also suitable for obstetricians, midwives and pregnant women.
It can connect to a computer, CD or Type to record the baby heart sound and share your baby’s heart beat with family and friends via email.
2 AAA size batteries ( alkaline or chargeable) are very convenient to buy. The batteries can last more than 6 hours for continuous use ( depend on capability )
Feature and Technical Specification
All in one design
The probe and main units integrated togather
High sensitive doppler probe
Crystal clear sound
Low power consumption
Compact and light
Ergonomic design
Easy to use
CE approved
Ultrasound Frequency 2MHz
Ultrasound Intensity <10mW/cm2
Out put Headset with Volume Control
Double Audio Output sockets for Headset
Power Supply: 1.5V Battery x 2 (Type: AAA)
Sensitivity From 10 - 12 weeks
PC Interface cable
Battery Life >360 minutesSafty Standards
CE Certified, EN ISO 13485:2003 compliant
Conforms to UK and EC Medical Safety Requirements (Medical Directive
93/94/EEC) CE 0123Dimensions
(L) 110 x (W) 55 x (H) 16 mm
WEIGHT: 80g( with 2 AAA batteries)
DISPLAY: 25*14 mmInside The Box
Baby Sound A unit
1 Headset
1 Recording Cable
Instruction Manual
1 year warrantyTips that will make the use of this fetal Doppler easier:- Take it with you when you first visit your doctor. The doctor or Ultrasound Tech can very easily show you how to find your baby heartbeats
- During the first stages of the pregnancy place the Doppler probe just above the pubic hair. As your pregnancy progresses, you will find the heartbeat higher up.- Move the probe gently and very slowly.
- Lean the Doppler probe downward toward the pubic bone.
- Use some gel while using the Doppler probe. You don't need to buy any expensive Gel. You can use any general purpose Gel.
