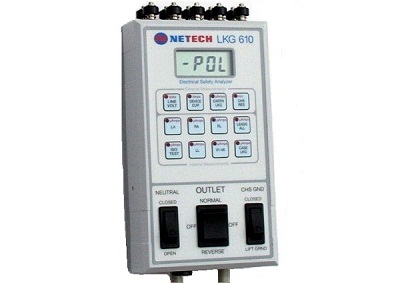

ELECTRICAL SAFETY ANALYZERS-LKG 610 - ELECTRICAL SAFETY ANALYZER - 10 LEAD ECG

Features

Fast, Accurate, and Portable

Easy to Use

Large LCD Display

Accessible Line Fuse

Calibrated Test Points

Selectable Test Loads

15 and 20 Amp Capability

Point-to-Point Testing

Use any Test Cable

10 Lead Universal Connector

Complies with both AAMI and IEC 601 Test Loads

LED Unit of Measure Indicator

Specifications

Display

3 1/2 Digit LCD Display

Measurement Range

Resistance: 0 - 1999 milliOhms

Leakage Current: 0 - 1999 microAmp

Instrument Current: 0 - 19.99 Amps

Accuracy

Resistance: +/- 2% +/- 1 LSD

Leakage:

+/- 1% of FS DC to 1 KHz +/- 1 LSD

+/- 2% of FS 1 KHz to 100 KHz

+/- 4% of FS 100 kHz to 1 MHz

Instrument Current: +/- 2% +/- 1 LSD

Power Requirements

110 VAC 50 - 60 Hz, 20 Amp or 220 VAC 10 Amp maximum rated for the test outlet and 0.1 Amps rated for the unit.

Ambient Temperature

Operating Range:

59 to 95 degrees F (15 to 35 degrees C)

Storage Temperature:

0 to 122 degrees F ( -18 to 50 degrees C)

Relative Humidity:

90% (max) at temperatures

Calibrated Test Points

Reference Ground: 1 Ohm

Leakage: 200 microAmp

Physical Dimensions

Size: 8.0 x4.5 x 2.0 inches (20.3 x 11.4 x 5.0 cm)

Weight: 2.5 lbs (1.1 kg)

Controls:

12 Push Button Function Keys

Open / Closed Neutral Switch

Normal / Off / Reverse Polarity Switch

Momentary Ground Open Switch

10 Universal Snap / Post ECG Connectors

Test Load Selector Switch
