Item Details   ITEM DETAILS

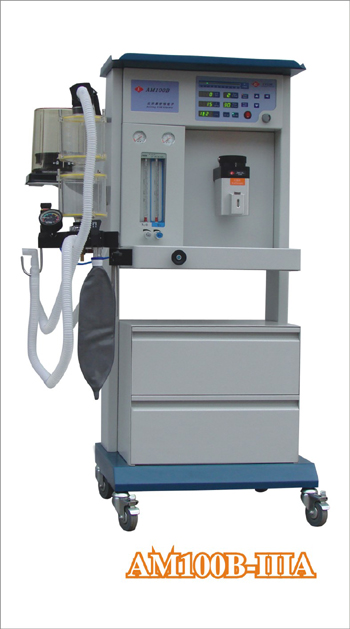

ANESTHESIA MACHINE AMG100B-III

Anesthesia Machine AMG100B-III
ANESTHESIA MACHINE AMG100B-III
Model Number:
GOLDWEI Item No.: AMG100B-III


Specifications

Features

Documents
Anesthesia ventilator
  • Patient type: Adult, pediatric
  • Driven mode: Pneumatic control electrical control
  • Display: LED display
  • Ventilation mode: IPPV, Manual
  • Tidal volume: 50mL to 1500mL
  • Respiratory frequency: 6 to 60bpm
  • I:E ratio: 1:1 to 1:4
  • Upper airway pressure limit: 1 to 8kPa
  • Lower airway pressure limit: 0 to 2kPa
  • Tidal volume: 50mL to 1500mL
  • Silence time for alarm: �� 120s
  • Monitoring parameters: Tidal volume, Respiratory frequency, Airway pressure
  • Alarm parameters: Upper airway pressure limit, Lower airway pressure limit, oxygen supply failure
  • Safety valve pressure limit: �� 6kPa
  • Power supply: AC 220V �� 10%, 50Hz �� 1%


Vaporizers:
  • Flow range: 0.2 to 15 L/min
  • Concentration: 0 to 5.0%
  • Agent: Enflurane or Isoflane


Main unit:
  • Mode: Semi-open, semi-closed or closed system
  • Gas supplies: O2/N2O 0.3MPa to 0.6MPa
  • Flowmeter: O2/N2O four tube flowmeter, 0 to 10 L/min (With inter-lock protection devices ensuring the oxygen concentration > 25%)
  • O2 flush: 35 to 75 L/min
  • O2 deficiency alarm: Audible alarm for at least 7 seconds
  • Respiration loop: Good airtight, easy for using, easy for cleaning and sterrilizing

There are no documents download yet.
