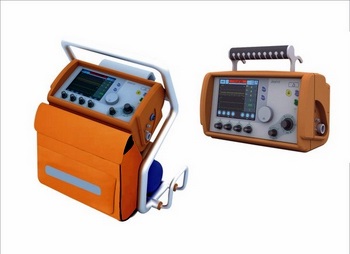

- Multi-functional emergency transport ventilator, can also be used for ICU treatment
- Microprocessor controlled system
- Simple operation, compact design, reliable performance
- 5.6 inch multi-color LCD display
- Use electronic knob setting
- Various waveform display and multi-parameter monitoring Backup apnea ventilation
- Respiratory valve can be sterilized repeatably
- Improve the breathing pattern
- Flexible power supply: A/C, D/C, rechargeable build-in battery
Main Unit:
- Patient type: Adult Pediatric
- Driven mode: Pneumatically driven electronically controlled
- Working mode: pressure limited; time cycled; volume controlled
- Setting: Electronic knob
- Ventilation mode: SIPPV,SIGH,SIMV,CPAP,SPONT
- Tidal volume: 0 ~ 1500ml
- Breathing rate: 4 ~ 100bpm
- I/E: 3:1 ~ 1:5
- Trigger Sensitivity: -2Kpa ~ 2Kpa PEEP
- PEEP (Optional): 0 ~ 2Kpa
- Oxygen: 45% to 100%
- Alarm silent: 120 s
- Power supply: 100-240V��10%, 50/60HZ��1HZ
- Electric security: ISO10651-3; IEC60601-1
Monitoring parameters:
Tidal volume, Minute volume, Respiratory Rate, Airway pressure (peak, plat), Waveforms (Optional) include P-T, F-T,V-T,P-V loop, V-F loop
Alarms:
Tidal volume, Airway pressure, Respiratory Rate, Apnea, Power supply failure, Lack of Oxygen Pressure, Battery Low
Humidifier (Optional):
- Temperature control
- High temperature alarm, Autopower cut off
- Power supply: 220V��10%, 50HZ��1HZ
